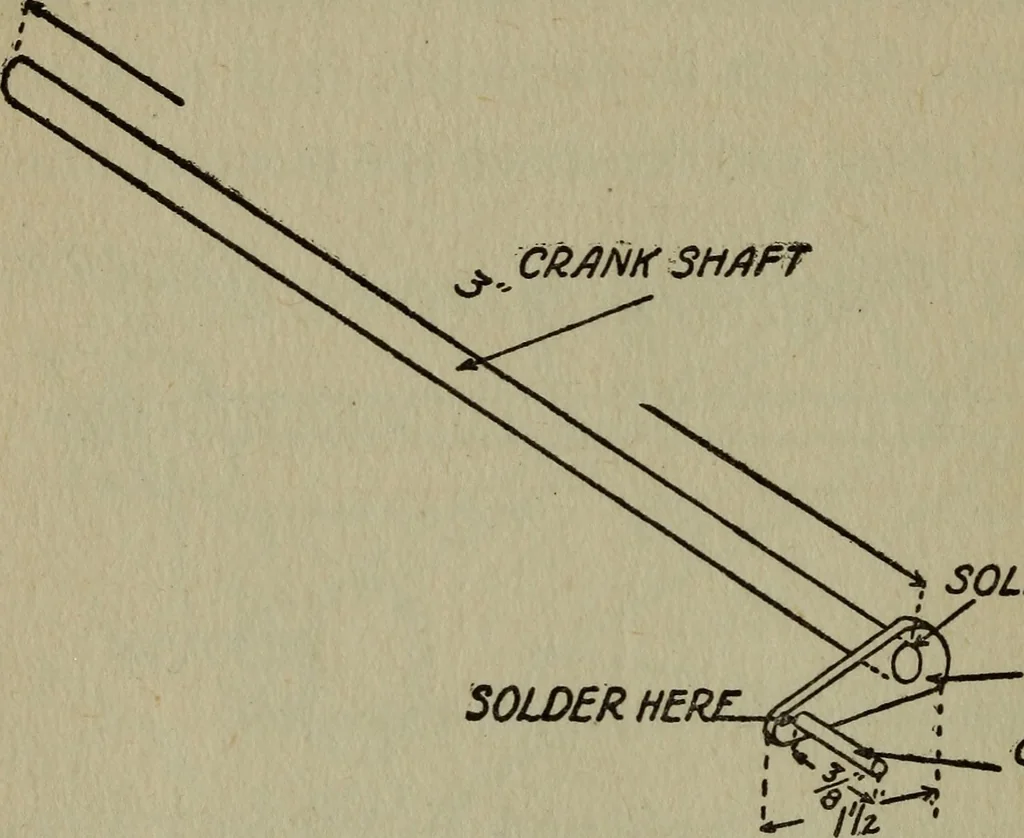

ittle and then drill a/46-inch hole through it %6 inch from the end asshown at B in Fig. 24. This done, fit the otherend of the piston rod into the piston and be sureto get it in straight, and then solder them to-gether. 50 The Boys Book of Engine-Building Having the cylinder and the piston, the… … OLDER HERE CRANKSOLDER CRANK PIN Fig. 25 A. The Crank and Crankshaft the head to the cylinder using your soldering cop-per to do the job. Be careful that the head is on so that the pis-ton will work forth and back without binding.When you have done this, go ahead and solderon the other head to the…
