Hale, Joseph W. L. (Joseph Woodwell Ledwidge), 1886- · New York [etc.] McGraw-Hill book company · leaf 58

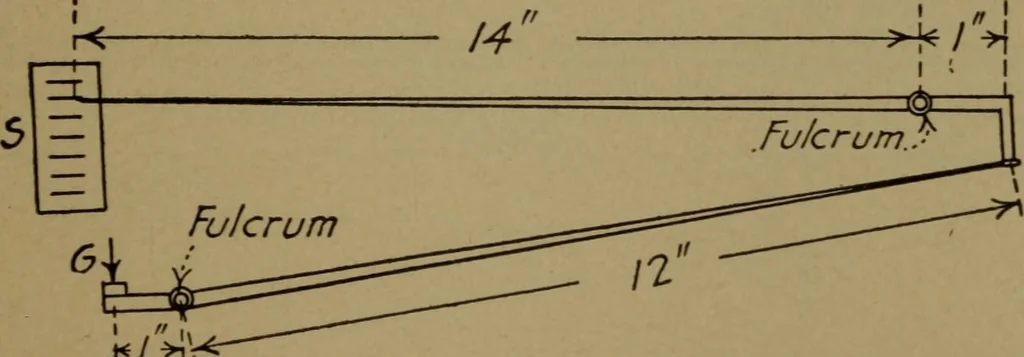

Fig. 57. example in testing a piece the end of the long lever moves.2 in. beyond the standard gauge mark, the work beingmeasured is one-twentieth of .2 or .01 in. from thestandard. PROBLEMS 34. In the indicator shown in Fig. 57 the pointer indicates onscale VS a distance of .48 in. beyond the gauge… … ^/^\ Fig. 58. 36. An indicator similar to that shown in Fig. 57 has .lever armsof .75 in. and 18 in. If a piece being measured is .025 in. fromstandard gauge, how far will the pointer move on scale S^^ fromthe standard gauge mark? 44 MECHANICS AND ALLIED SUBJECTS
Mechanics, Applied
