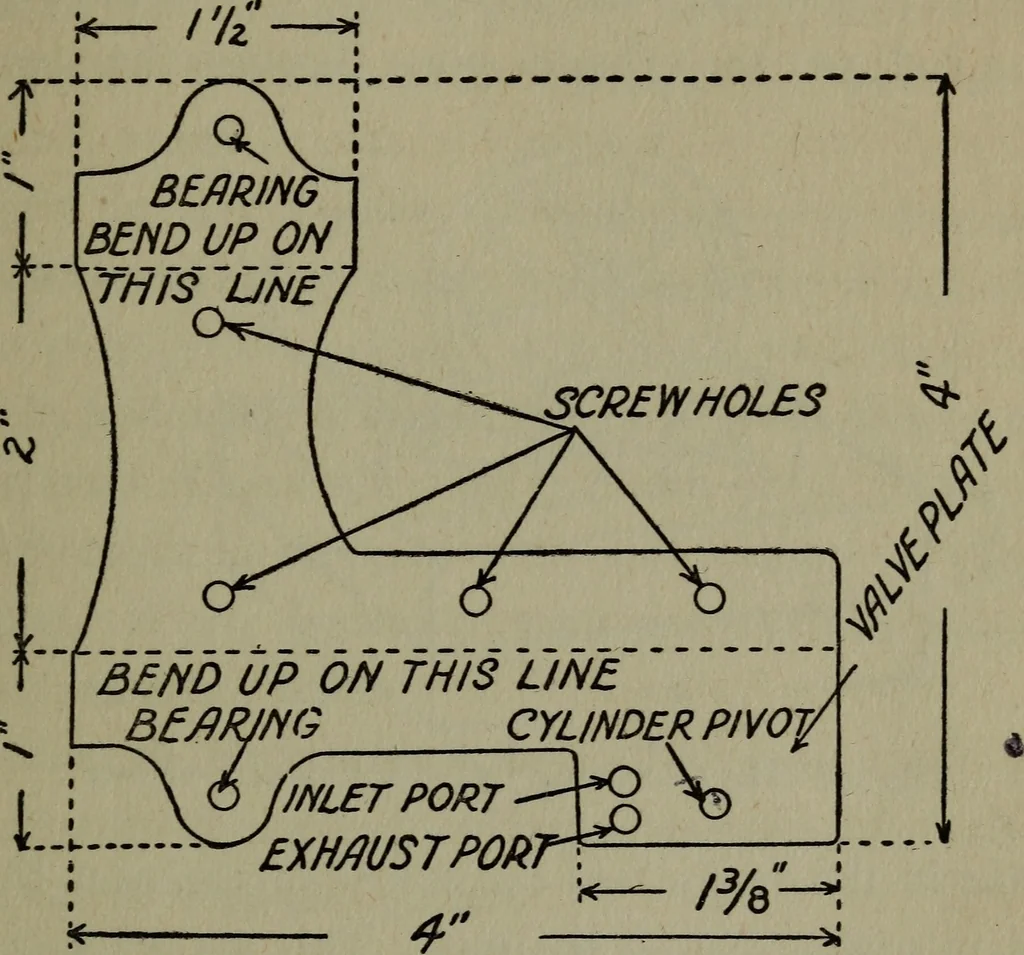

ust port and in each of those marked bearing;also drill a %-inch hole in the circle marked cyl-inder pivot and in the screw hole circles. Now bend up the sides of the tin or brass onthe dotted lines to form the frame and solder apiece of brass pipe Vs inch in diameter and 6 1 You can use lead, but… … Fig. 26. The Engine Frame your work, the assembling of the parts. Beginby screwing the frame to the bed of wood andhave the valve plate and bearing on the side withit flush, that is even, with one of the long edgesof the bed. 54 The Boys Book of Engine-Building Next slip the crankshaft through the…
