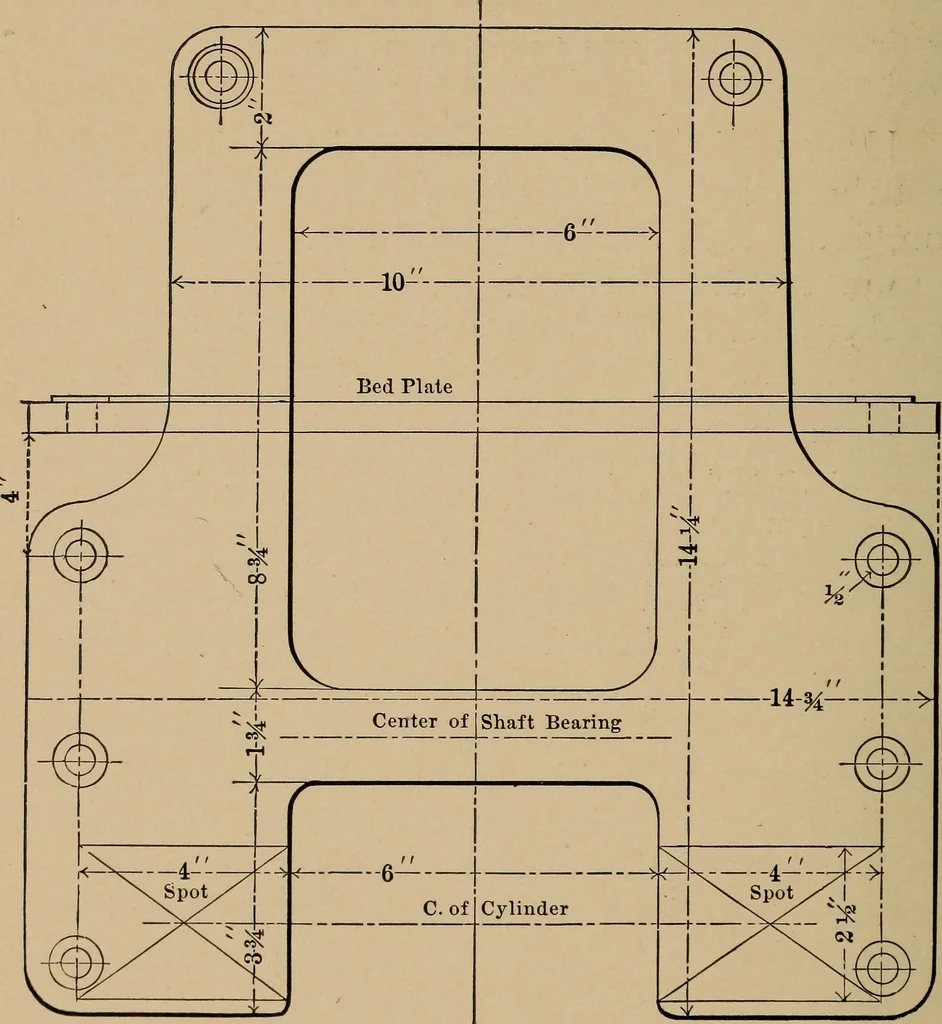

must be put in between thebrackets and frame ; all must be in actual contact.It is now in order to set the cylinder and frame onthe bed-plate where it belongs, the holes havingbeen previously drilled in the lugs on the bottomfor the bolts. The frame must be carefully cen-tred with a centre-line,… … Bed Plate, 3 x 4. When this is done, take a sharp scriber and markthrough the holes in the lugs onto the bed-plateto locate the holes. This must be very carefully SMALL ENGINES AND BOILERS. 51 done indeed, and is a job for an expert mechanic,for there is no alteration possible after the holesare…
