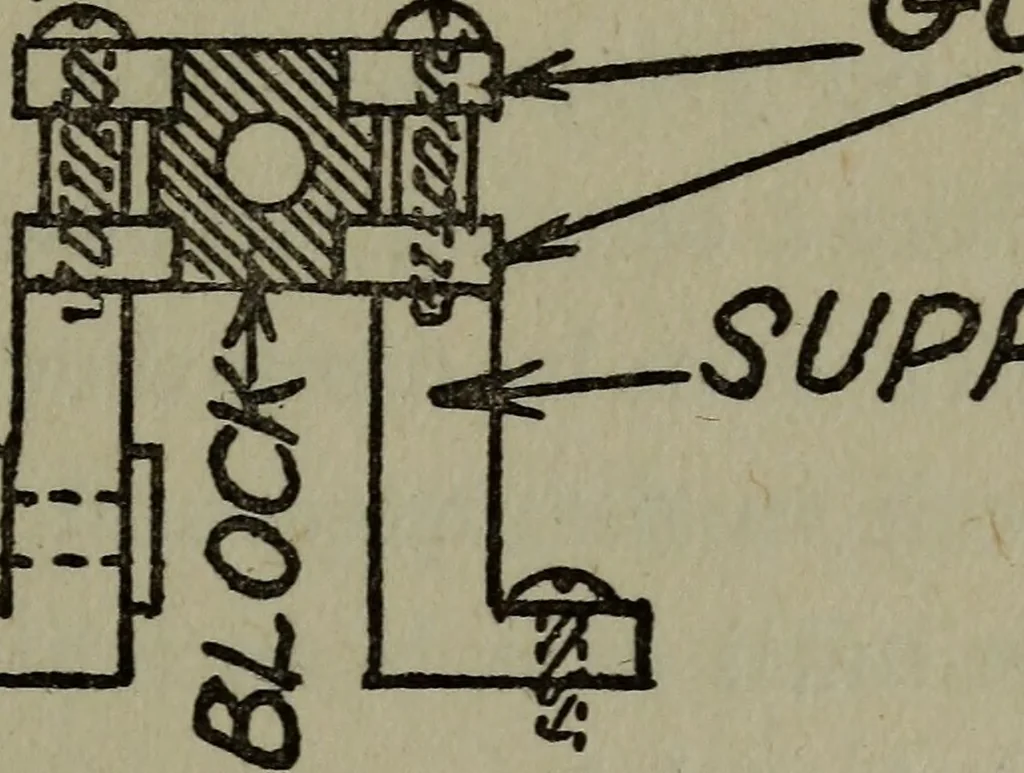

asshown at K in Fig. 31. It must slide to and fro the length of the guideeasily and yet without the slightest play. A A V24-H. P. Horizontal Steam Engine 79 cross section view of the cross-head guide andthe guide block is shown in Fig. 35. Drill a%-inch hole through it, thread it with an 8-32tap… … GU/DES SUPPORT ROCKER* Fig. 35« The Rocker Arm and Cross-head Guide inch long; file it down until it is % inch wide atone end; file the ends round and drill two %-inchholes, %e inch apart, as shown in Figs. G 31, 34and 35. Make a brass washer Vs inch thick and % inchin diameter with a %-inch hole…
