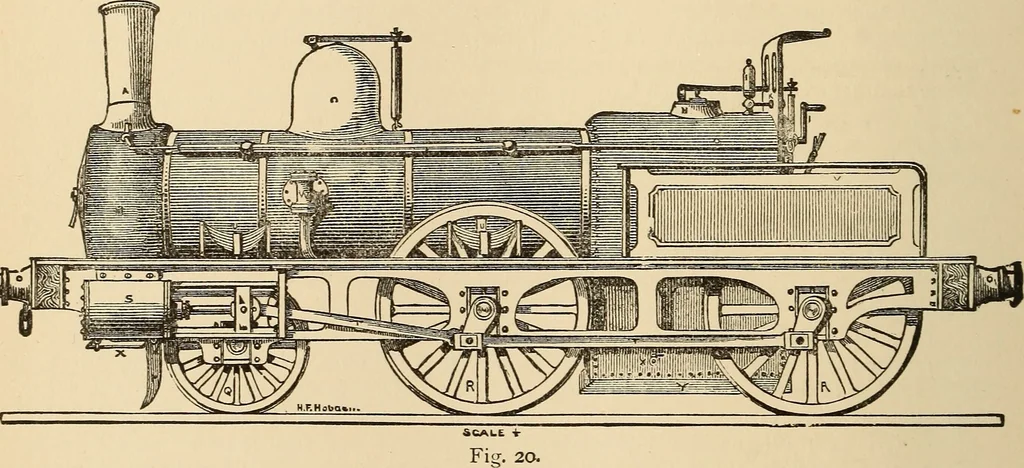

ever,M smoke-box (with door), n o spring-buffers; p is the line-clearer, or wheel-guard;Q leading wheels, and r r driving ditto; s one of the cylinders, with piston-rod andguides bolted to frame, and showing double connecting rod at t t ; u u are thesprings which support the weight of the boiler,… … boiler; and x is the blow-ofif tap to clear the model from all water after havingused it; and y shows the side of ash-pan. Now to commence making the framework. This should be made of one-eighthof an inch sheet-iron, squared up perfectly true and flat, and cut out as shown inFig. 21, commencing…
