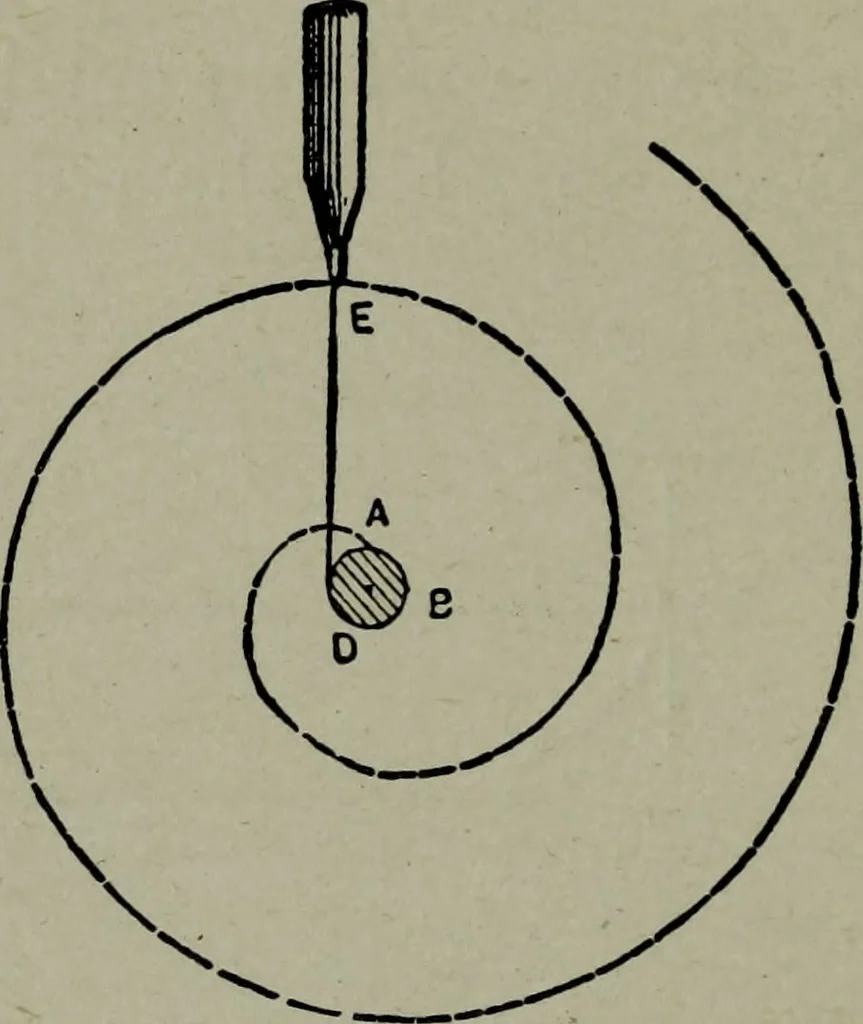

is a rough-and-ready means of drawing a 84 ARCHITECTURAL DRAWING SELF TAUGHT scroll, but it has the quality of being fairlycorrect. Another similar method is shown in Fig. 74,only in this case the string unwinds from a spoolon a fixed center A, D, B. Make loop E in theend of the thread, inwhich… … Fig. 74. by the size of the spool. Hence a larger orsmaller spool is to be used, as circumstancesrequire. A simple method of forming a figure thatcorresponds to the spiral somewhat is shown inFig. 75. This is drawn from two centers only, aand e, and if the distance between these centersis not too…
