Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 173

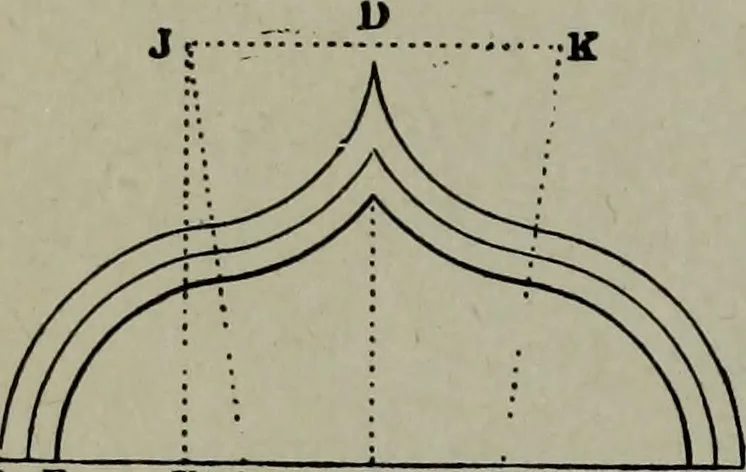

Fig. 136. 138 ARCHITECTURAL DRAWING SELF TAUGHT … A E F « c H Fig. 137. some little different treatment to the previousone. To obtain the proper curves and centersfor this style of arch proceed as follows: Let A B be the outside widthof the arch, and C D theheight, and let A E be thebreadth of the rib. Bisect A B in C, and erect the perpendicular…
Architectural drawing
