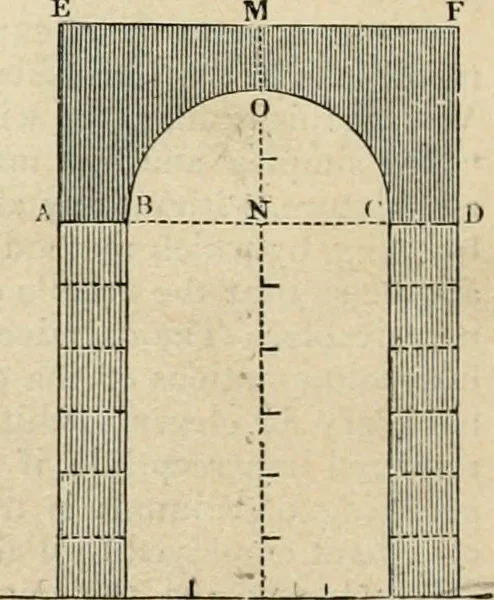

tched jiart AEMFDCOBis the load, and ABGH, CDIK the supports. The line GKis divided into six parts, which serve as a scale to the diagram,the opening III being four of them, the height BH six, NOtwo, and OM one. From the exact quadrature of the circlebeing unknown, it is impossible to measure with… … 6 X 3 - - 4 X 4 X -7854 = 11-72. Now the suports will be IK x IC x 2 (the two piers) = the piers; or, in figures, 1x6x2 = 1200. That is, in the diagram the load is very nearly equal to the supports, and woidd have beenfound quite so, if we could have more accurately measured the circle, or had with…
