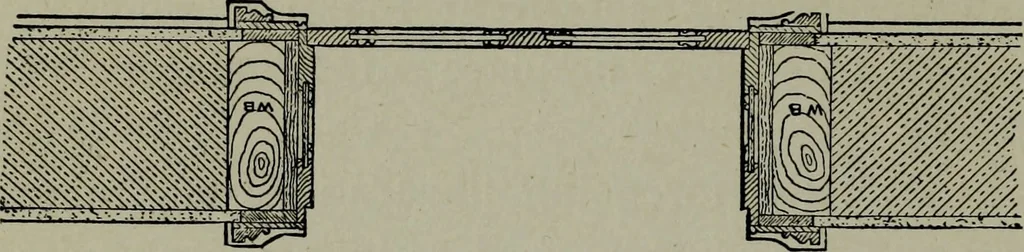

ediately requireto know, and after a thorough mastery of theseexamples Ke will have no difficulty in obtaininga higher knowledge from the thousand and oneother sources that are available, should he sodesire. SOME MISCELLANEOUS PRACTICE Suppose it is necessary to show a door andcasings in abrick… … Fig. 149. style of door, and finish, and work to scaleaccordingly. In this case I show an elevation.Fig. 151, and plan respectively with a four paneled door withjamb and sofifit lining.Fig. 150 shows a por-tion of the plan en-larged. In this case it willbe seen that the dooris hung to the…
