Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 80

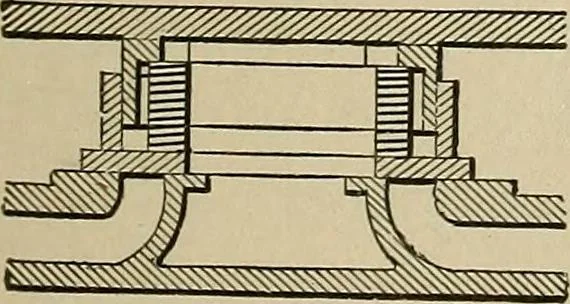

238. SINGLE D SLIDE VALVE,with lap. The length of the valve overthe length from outside to outside ofsteam ports is double the lap. … 239. BALANCED SLIDE VALVE.—A ring in a recess of the valve rides againstthe steam chest cover, held by a spring. 7* STEAM POWER. r ^ ^^^^^^^:: n 240. DOUBL&PORTED SLIDEVALVE and adjustment by doublenuts in the back of the valve.
Mechanical movements
