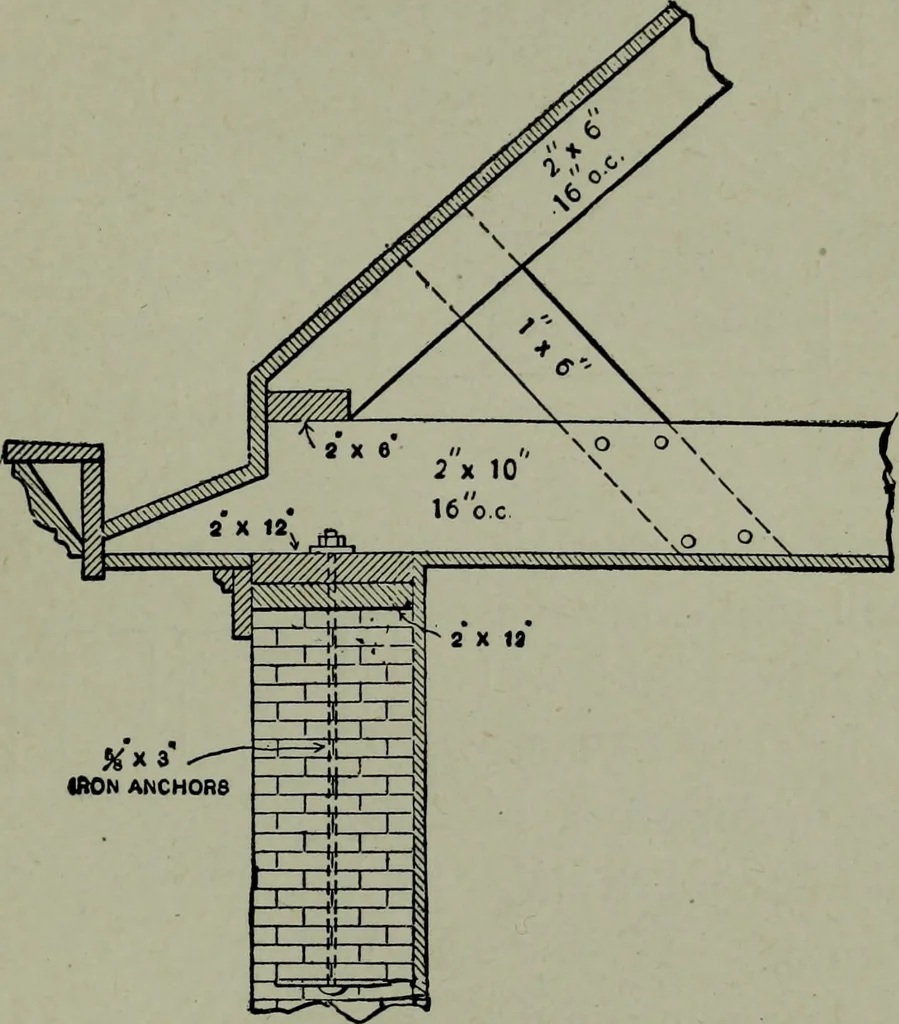

ARCHITECTURAL DRAWING SELF TAUGHT 161 in its place on the wall. A section of a boxwindow frame is shown at Fig. 164. The weightsare seen in the box, the stud forming part of thebox. This is designed for a balloon framehouse, and it will be seen that the inside trim … •Fig. 163. forms one side of the box. This is an exceed-ingly cheap way to make a frame as but verylittle stuff is required in its construction. The section of window frame shown in Fig.165 exhibits the portion cut at the sill. This 162 ARCHITECTURAL DRAWING SELF TAUGHT
