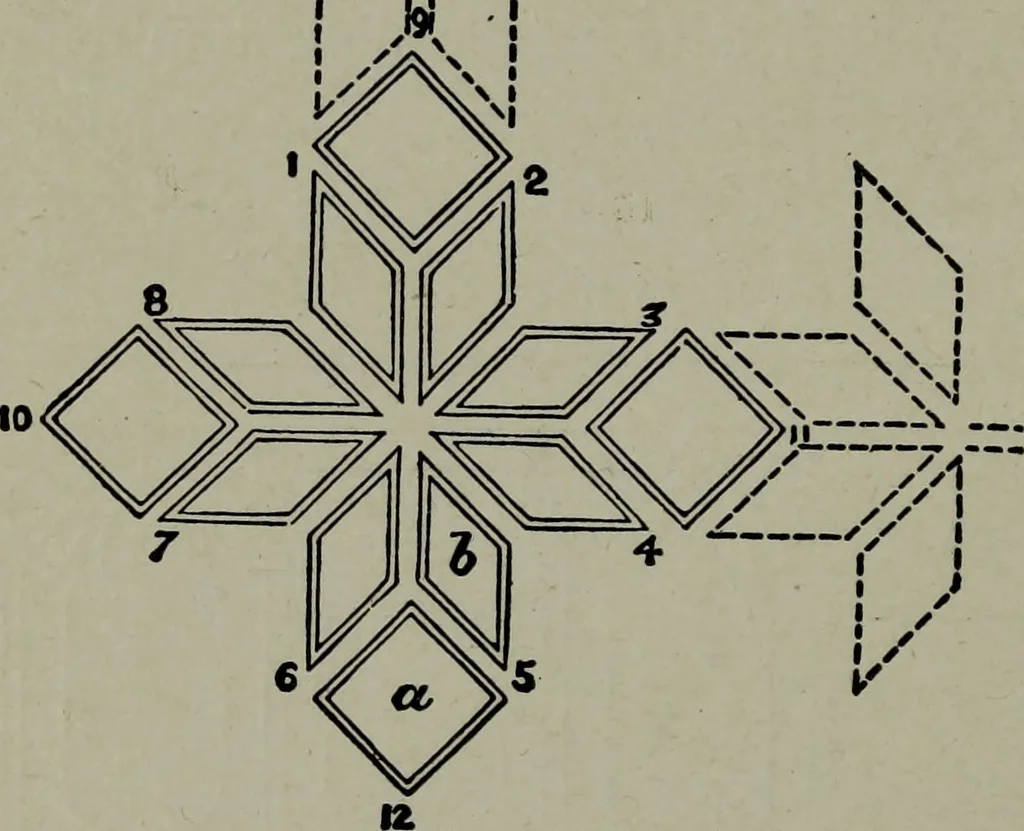

the squareis shown In finished work at Fig. 177. Thisrepresents a perforated balustrade or parapet;the curved lines are obtained by the compass,centers being easily found. I6B ARCHITECTURAL DRAWING SELF TAUGHT A Still more complicated figure is shown atFig. 178. This may be formed as follows: Ifthe… … Fig. 178. which may be done as in Fig. 179, by forming asquare, and thereafter an octagon the side ofwhich is equal f e, f g. Draw lines, i i m, distantfrom each other equal to the distance betweenthe rhomboids in Fig. 178. Parallel to thediagonal lines c b, a d, draw lines equal to i i.From e, one…
