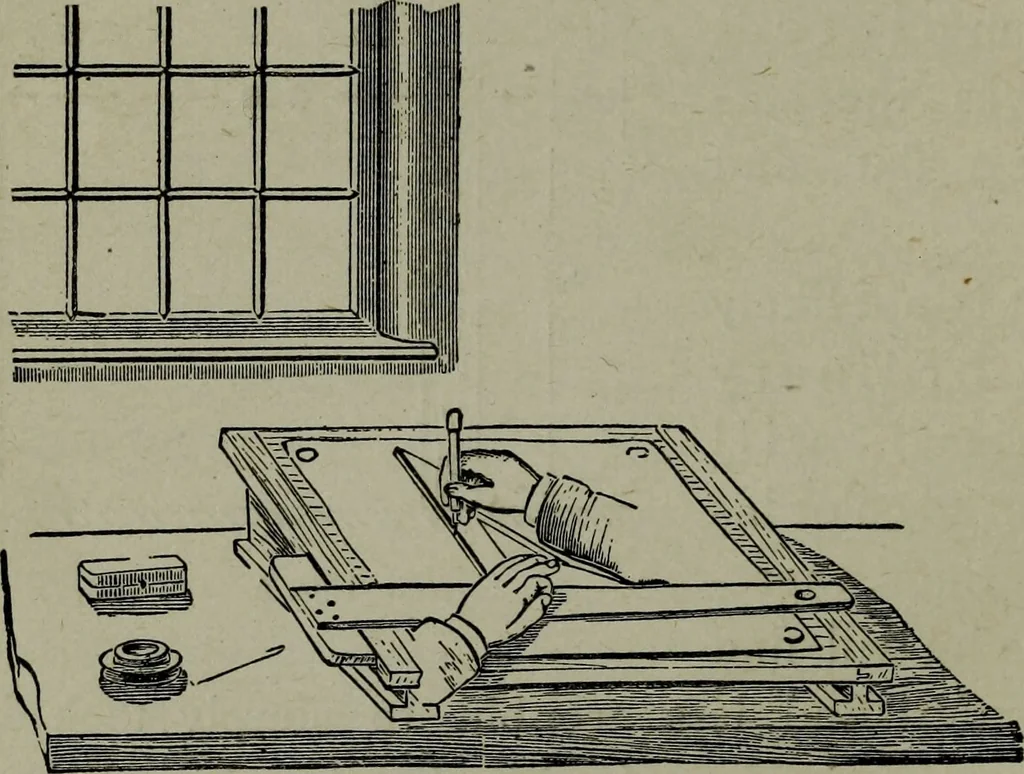

Fig. 6. 24 ARCHITECTURAL DRAWING SELF TAUGHT Having prepared a drawing board, the nextthing will be to provide a table or desk to restthe board on. I show a very good scheme forthis purpose in sketch Fig. 6, and which canreadily be made by any workman who can usetools. This should be fixed in some… … Fig. 7. projection of the table or desk are marked inFig. 6, and a movable block of about 3 inchessquare is shown at A, which can be moved insuch a fashion that the angle of the board may ARCHITECTURAL DRAWING SELF TAUGHT 25 be made to suit the operator. This block mustof course be as long as the…
