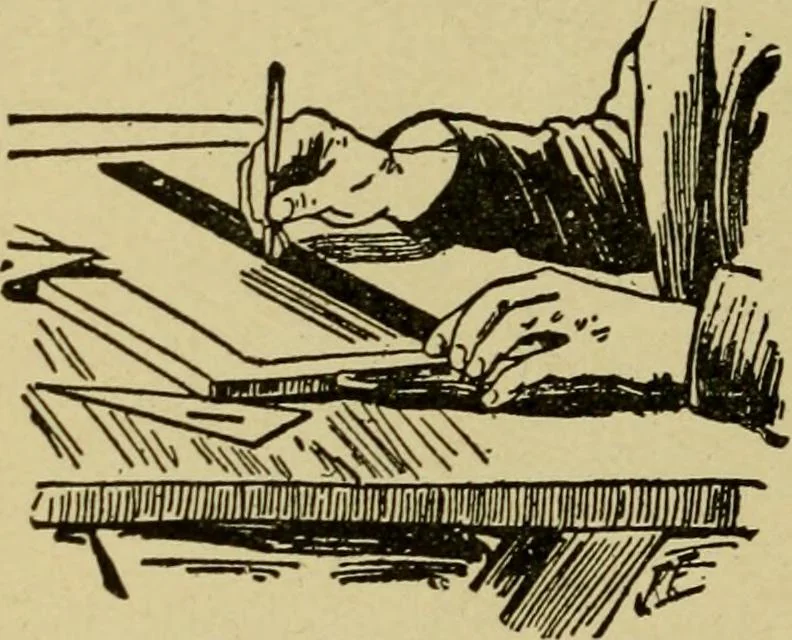

y the pen thor-oughly. The nibsshould be kept per-fectly bright andclean. The liquidIndia ink whichcomes in bottles isnowgenerallyused.This much being thoroughly understood, I willnow try and give a few hints as to the propermethod of using the drawing pen. Fig. 82 showsthe method of holding the… … Fig. 82. ARCHITECTURAL DRAWING SELF TAUGHT 91 running on the edge of the blade only, or in sucha position that the ink cannot flow freely fromits points. The result in either case would be abroken or ragged line, a condition to be avoided,or a bad drawing will result. In marking off dimensions on a…
