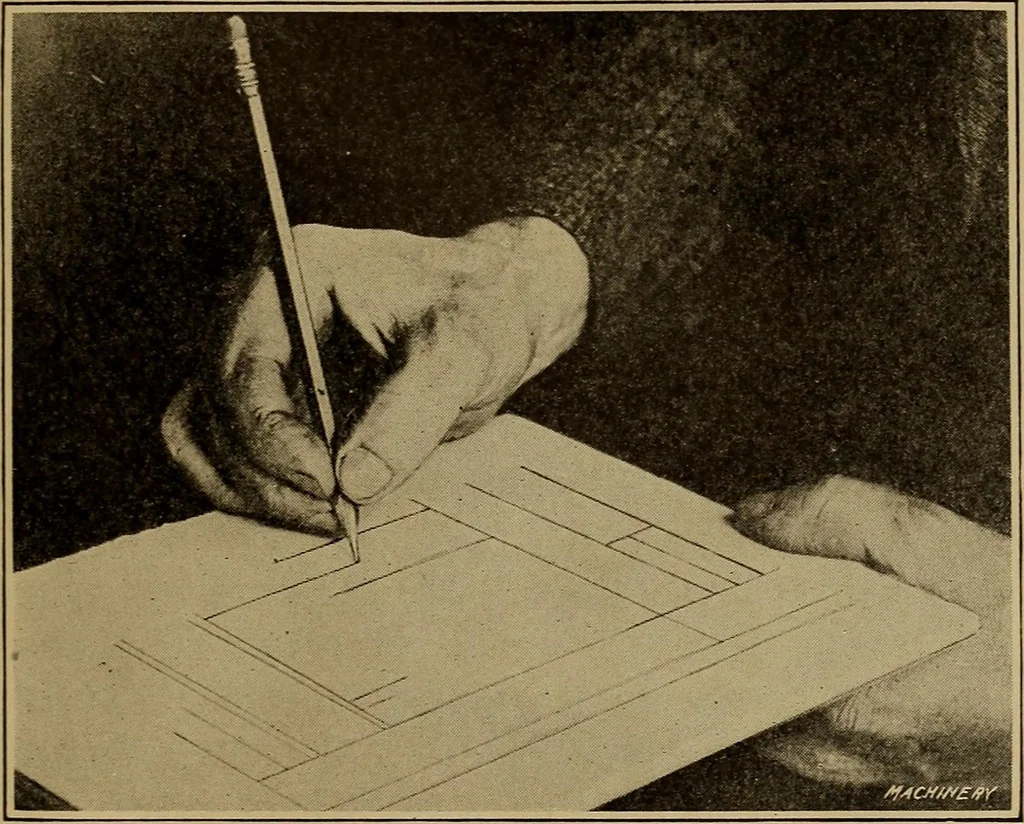

llow-up strokes. SKETCHING 315 After it has become easy to draw straight lines near theedge of the pad, the pencil should be moved nearer the centeras shown in Fig. 3. This exercise is a little more difficultbecause the pencil is farther from the guiding finger. Thepencil is held at different… … Fig. 4. Lines drawn at Right Angles and in Different Positions byguiding Pencil from the Four Edges of the Pad be used for guiding, and in this way the entire surface of thepad can be covered, if it is not over eight or ten inches wide. The next exercise should be that of drawing lines of…
