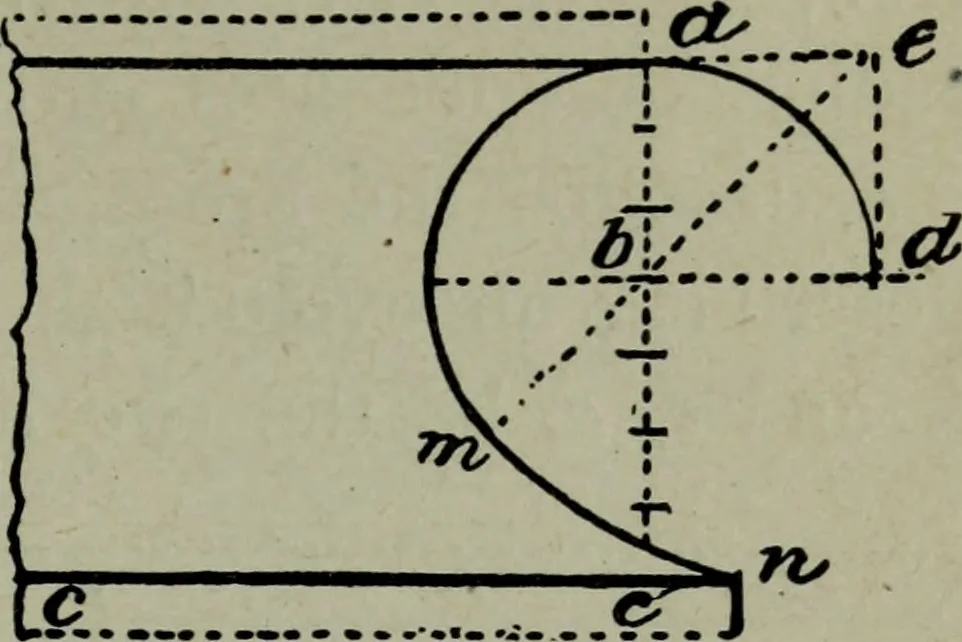

nd that will always be in vogue — and it is but fitting the young student and workman should know how to draw them correctly. The example shown at Fig. 55 is a Scotia or Fig. 55. ARCHITECTURAL DRAWING SELF TAUGHT 69 cove and is drawn as follows: Divide a, b intothree equal parts; with ^ as a center… … Fig. 56. getting a deeper moulding. Let <2, ^, be the upperline and c, Cy the lower; from ^, drop a perpendic-ular to c\ divide ^, Cy into seven equal parts;through the third of these, from a, draw a line _ parallel to ^, ayfrom by with by a,draw the semicir-cle by dy and fromdy draw to Cy…
