Builders' architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1917)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919, Frederick J. Drake & Co · Chicago, F. J. Drake · leaf 166

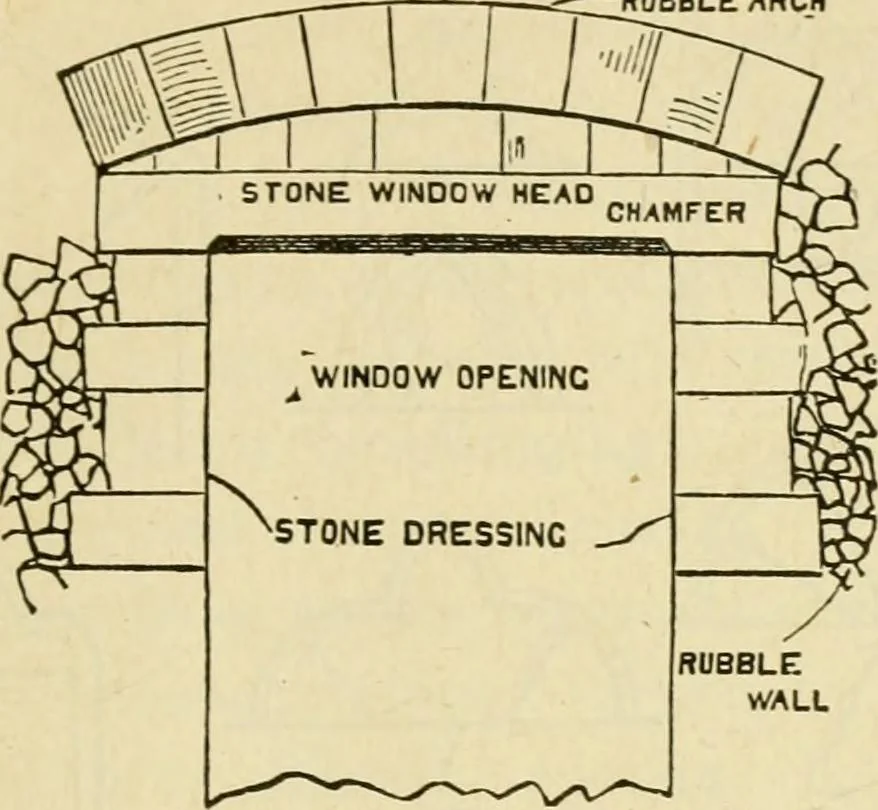

s are formed to receive the stone above. Another style of opening in stonework isshown at Fig. 145, where the head of the 144 ARCHITECTURAL DRAWING SELF TAUGHT PLATE 9. Plate 9 shows three examples of inside finish—a door, a window, and sliding door — openingwith trim. These like the other examples… … Fig. 145. weight over to the jambs. The face of thewindow is all of dressed stone, while the wallsare formed of irregular stones.
Architectural drawing · Architecture, Domestic
