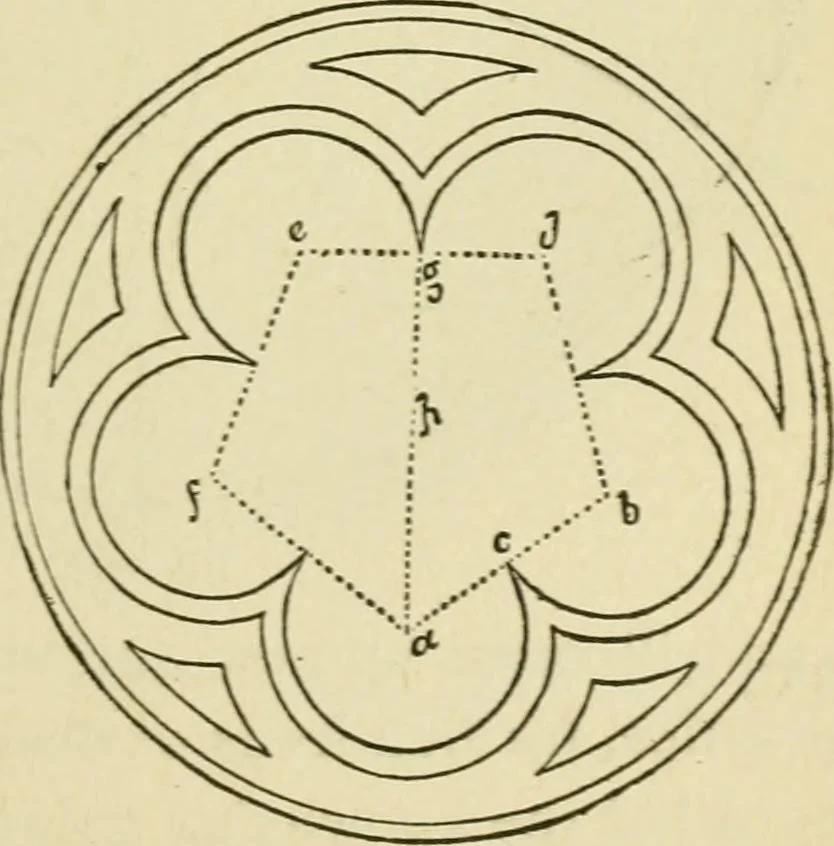

rcles,found by the intersection of the diagonals, a b, c d, of the square;the curves, s s s s,are drawn fromthe center a; whilethose meeting in1111 are describedfrom the centers,h m, f and g. The cinquefoil.Fig. 216, is de-scribed from thecorners of the pen-tagon, a b, d e f; by dividing e d… … Fig. 216. 194 ARCHITECTURAL DRAWING SELF TAUGHT Two more examples, and then I have finishedin this style, but these are elaborate and will,doubtless, try the skill and patience of the stu-dent, but the results will well repay for the labor. ^ Fig. 217. And will open up new and unexplored fields…
