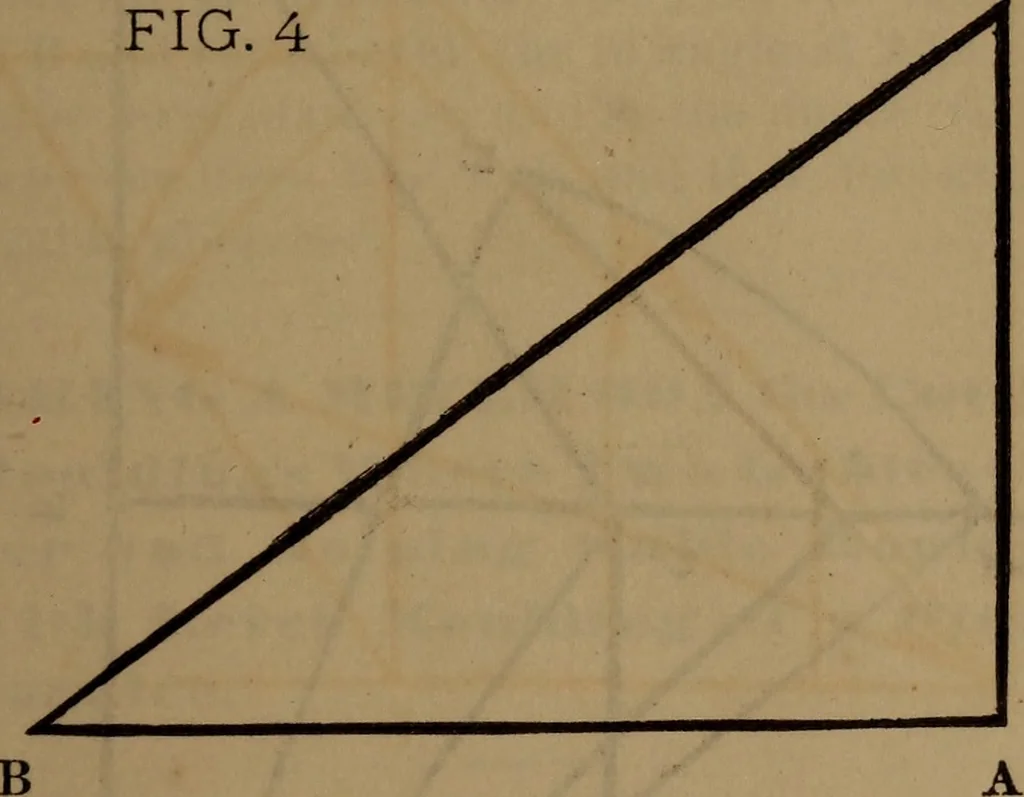

H—then the line11 li shows the hip raft^M-in position to get the BUILDERS GUIDE. (M Ipiiirtlis and bevels of the jack-rafters. TheImes J J. drawn f om A B to B H, are the jack-riifters, and a bevel set in the angle at K will betiie cross-cut of the same. The plumb cut at thetop and the bottom cut… … RIGHTANGLE TRIANGLE. Squarino: a number is multiplying it by itselfand is a term us^d in square root. Carpentersshould understand the system of square root asthey frequently have occasion to use it in vari-ous ways for finding lengths and areas. The plan of a rafter represents a…
