Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 223

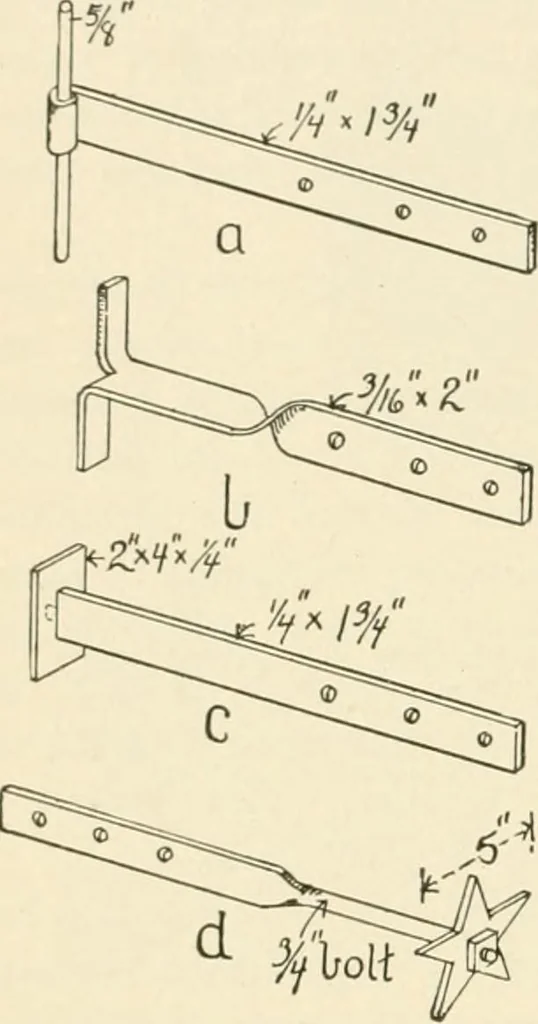

g; 143. If the wall is a side or rear wall, where the appearance is not ofmuch consequence, it is better to have the anchor pass clear throughthe wall, with a plate on the outside, assuch an anchor gets a much better holdon the wall than is possible when it isbuilt into the middle of the wall.… … Fig. 142. For anchoring the ends of girders, orwhere a particularly strong anchor isdesired, the form shown at d is undoubt-edly the best. This anchor is madefrom a f-inch bolt, flattened out forspiking to the joist and provided with acast iron star washer. It possesses theadvantage of having a nut…
