Mechanical drawing for industrial and high schools (1917)
Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 73

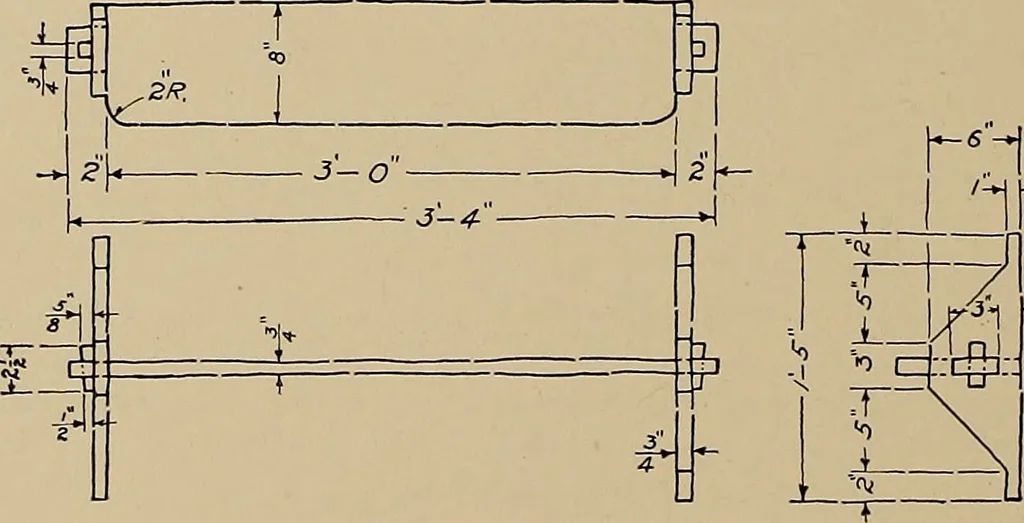

-/i Fig. 23. LESSOX Xo. 31—Continued. the front, and the left-hand end, as this view will be most pleasingto the eve. Do not overlook the small screw-holes near the ends,as they should be shown. Xo dimensions need be placed upon any of these iso-metric drawings imless for some special reason the…
Mechanical drawing
