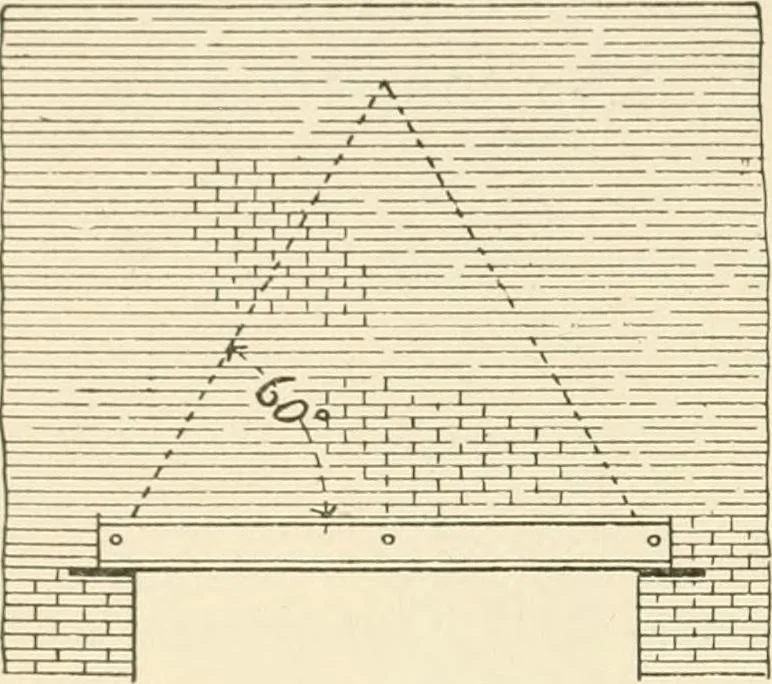

o be supported by a girder, much depends upon the structureof the wall above. If the wall is without openings, and does not sup-port floor beams, only the portion of the wall included within the 3 BUILDING ( ONSTRUCTION. dotted lines. Fig. 205, need be considered as being supported by thegirder.… … Fig. 205. A B r #t / / A * j i 1 1 1 tr1 1 1 1 1 1 \ \ A \ 1 — Fig. 206. as shown in Fig. 206, then the man-ner in which the weight bears onthe girder should be carefully con-sidered. In a case such as is shownin Fig. 206 the entire dead weightincluded between the dotted linesA A and B B should be…
