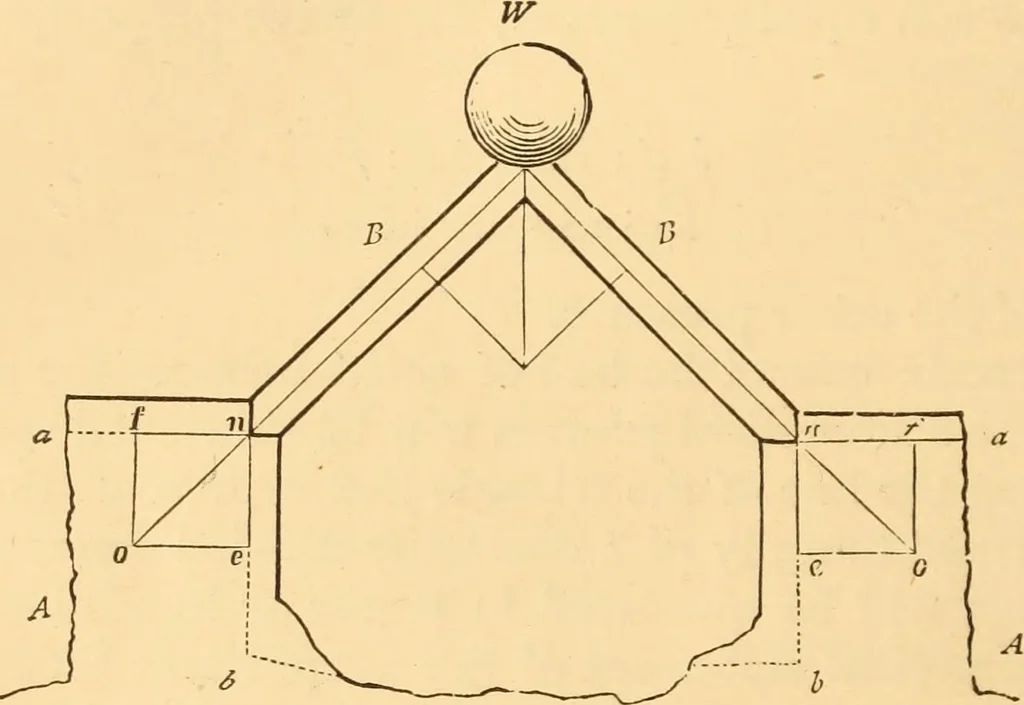

mthe blocks, A and A. If a piece of each block be cut off at 64 CONSTRUCTION. the horizontal line, a ;/, the feet of the struts would slideaway from each other along- that line, in the direction na;but if, instead of these, two pieces were cut off at the verti-cal line, nb, then the struts would… … Fig. 24. construct the parallelogram of forces by drawing 0 c parallelto an, and of parallel to bn; then nf (by the same scale)shows the number of tons pressure that is exerted by thestrut in the direction n a, and ;/ e shows the amount exertedin the direction n b. By constructing designs similar…
