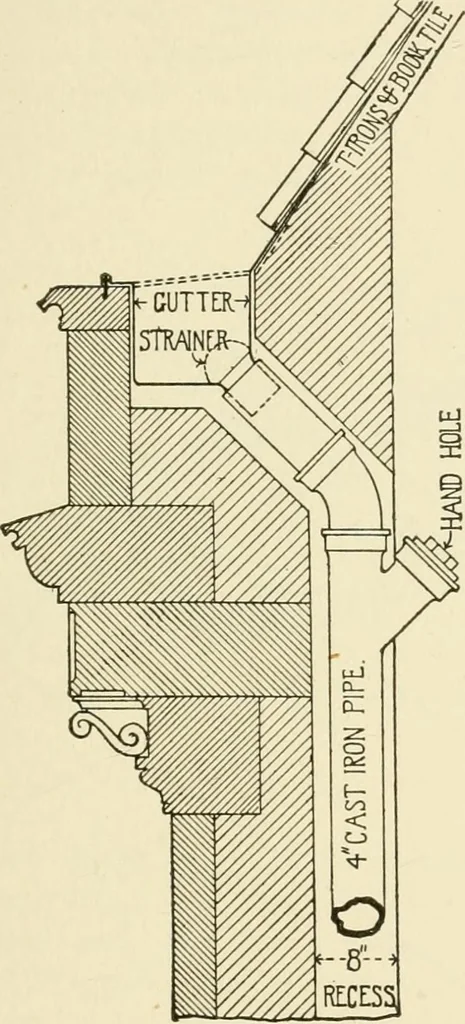

m pipemay either be run up beside theconductor, or a Y may be placedin the conductor in the cellar and a steam pipe connected with it. The upper end of the conductor should always be protected bya galvanized wire screen, to keep out leaves and other solid sub-stances, and, where practicable, a hand… … Fig. 147. 168 BUILDING CONSTRUCTION. buildings are usually finished to correspond with the eaves. If theeaves have a close finish, a similar finish is carried up on the rake of the gables. When a box finish is used for the eaves, the rakingcornice is usually boxed out to correspond. Rake mouldings…
