Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 267

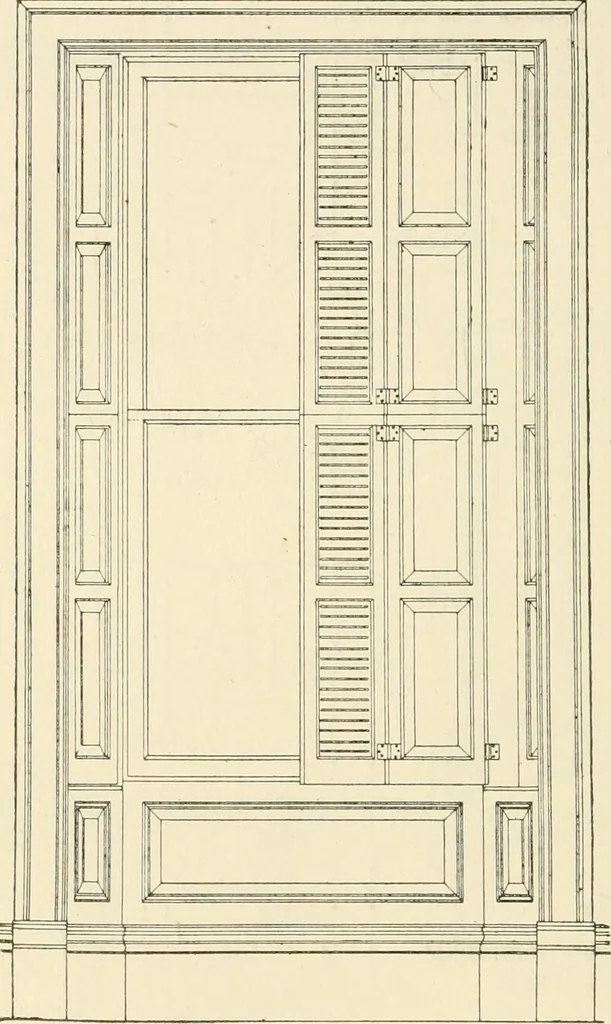

iJc*/* of inches. 264 B UILDING CONS TR UC TION. One feature which may be noticed in Figs. 251 and 252, and whichshould always be provided, is that the top of the shutter is not carriedto the soffit of the window, but is separated by a \ or -f-inchbead, and the bottom is similarly treated on the… … Fig. 253. In laying out the drawing for the window, how and where the cur-tain poles are to be placed should be considered. If they are to be set on the outside of the trim the casings may beset as close to the shutter box as the thickness of the wall will per-mit. If, however, it is desired that…
