Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 272

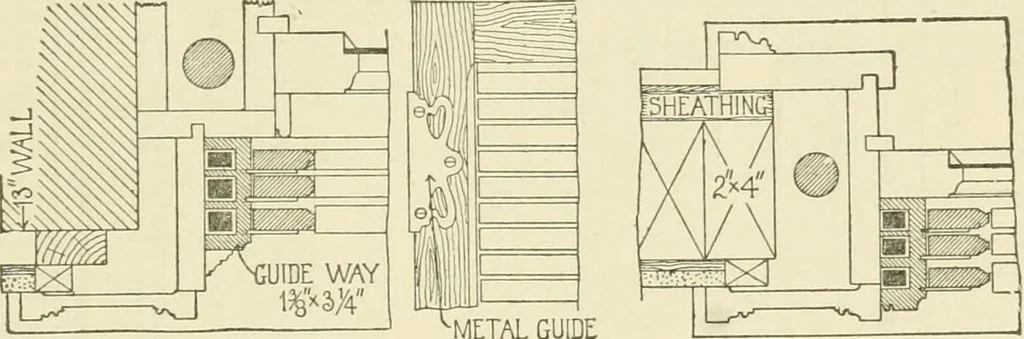

tool ; if a pocket beneath thestool is desired, the guideway should be extended to the floor and apanel back and hinged stool provided, as in Fig. 259. The Poppertblinds do not run in a groove, but are guided by ornamental metalguides, which run in narrow grooves in the guideway as shown. When… … METAL GUIDEFig. 260.—Popperts Weight Sliding Blind. Fig. 261. as shown in Fig. 261. In 9-inch brick walls, and often in old framebuildings, it will be necessary either to box out the casings or to pro-ject the guideway beyond the casings.* In new buildings the guideways should be put up when the…
