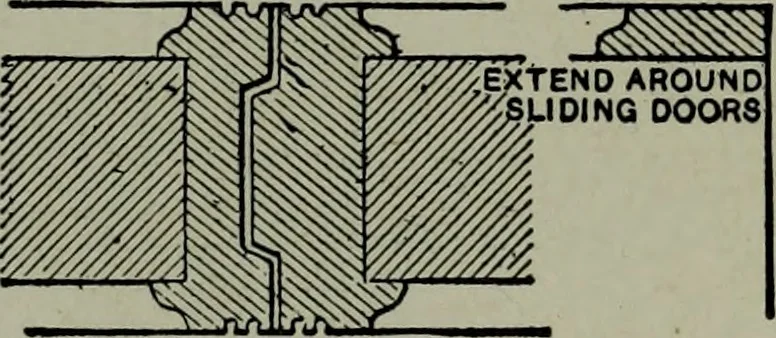

Fig. 158. of adjusting the joint at the junction of thedoors. The section shows clearly how the jointis hidden from view. A section and elevationof trim for a door isshown in Fig. 160. Inthis drawing the door,the step, the stud, the plaster and the trim are shown in place, and atthe bottom, the… … Fig. 159. 158 ARCHITECTURAL DRAWING SELF TAUGHT shown in section. This style of finish is calledblock finish, because of the turned block being placed on the corner.Fig. i6i exhibits acorner of a balloonframe, showing themanner of placingthe studs, cornerboards and otherfinish. I show at Fig. 162a…
