Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 67

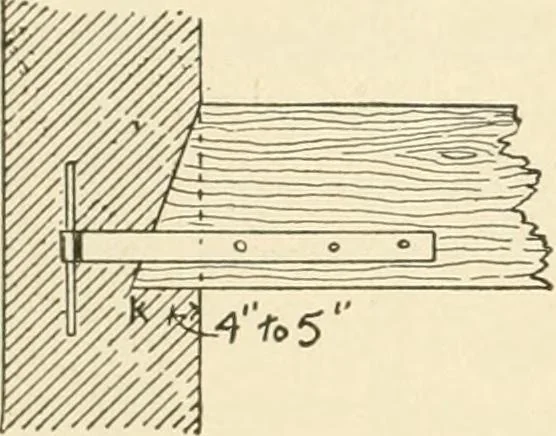

s should be made long enough to extendwithin 4 inches of the outside of the wall, and should always bespiked to the side of the joist near the bottom, as shown in the figure.The nearer the anchor is placed to the top of the joist the greaterwill be its tendency to pull in the wall in case the joist… … Fig. 38. WOOD FRAMING. OS costs a very little more. Anchors like a and b are spiked to the sidesof the floor joist and built into the wall, as shown in Fig. 38. If the wall is a side or rear wall, where the appearance is not ofmuch consequence, it is better to have the anchor pass clear throughthe…
