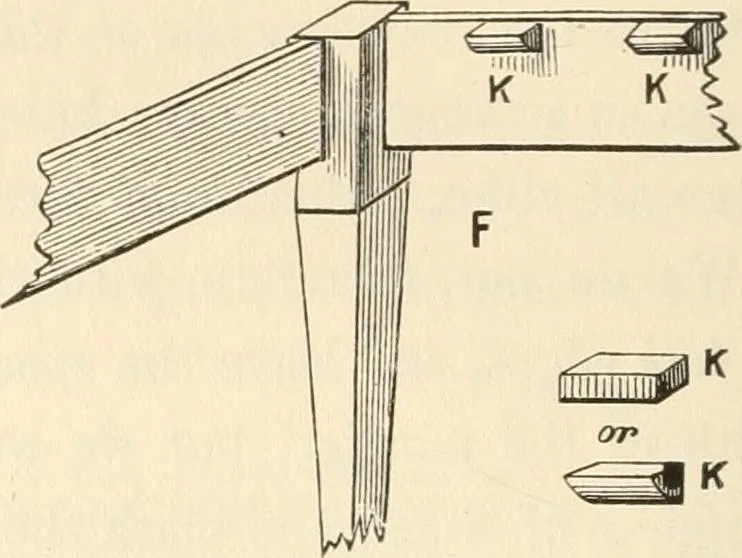

movablehead. Let us now proceed with the work in hand. One of thelegs of the table, before beiig worked into shape, is shownin Fig. 25; the dotted lines show how it will be eventuallysloped off below the mortices which carry the top frame.These mortices must not now go through the legs,… … Fig. 26. course meet, but it will be advantageous to cut those which are intended to receive the two longest strips, viz., thefront and back, rather deeper than the other two. Firstset off an inch from the top of the leg at the line A B. Ifless than this intervenes between the top of the morticeand…
