Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, Comstock · leaf 453

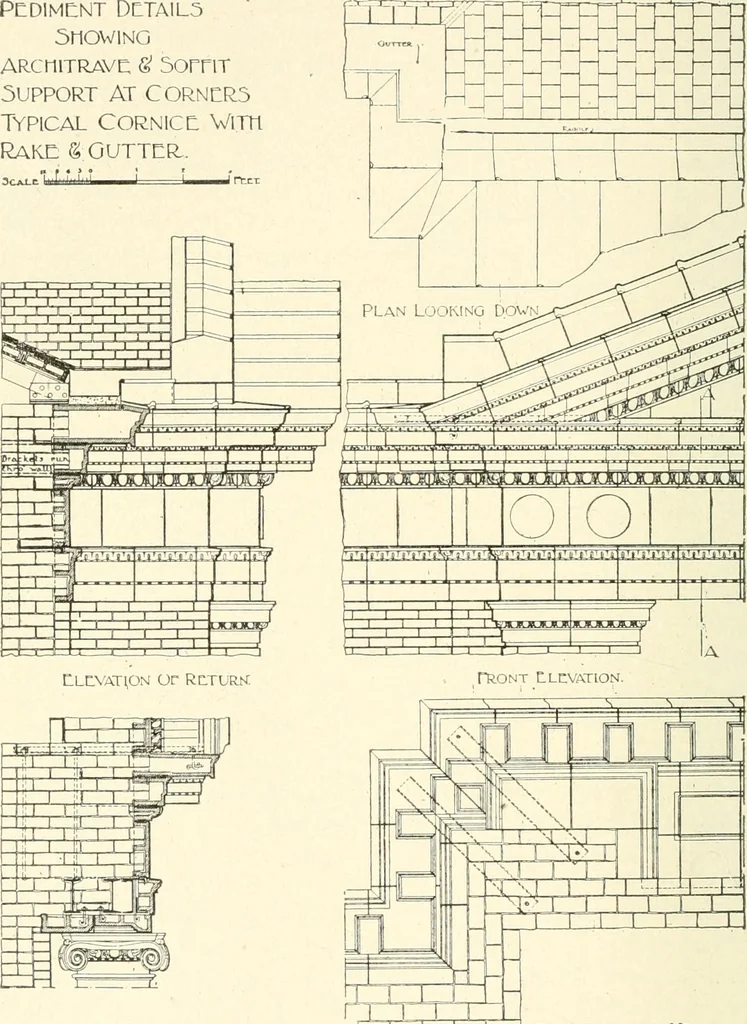

hat if thepositions of the iron are fixed they will sometimes be at variancewith the provisions for the terra-cotta. Pediments.—Fig. 259* shows terra-cotta pediment and cornicedetail construction, with entire entablature, and with plan of soffit,elevations and sections of returns and corner… … ^CCTION AA —I. I lIJ FLAN LOOKIMO UP Fig. 259.—Terra-cotta Pediments and Cornice Details. ARCHITECTURAL TERRA-COTTA, 427
Building · Carpentry · Masonry
