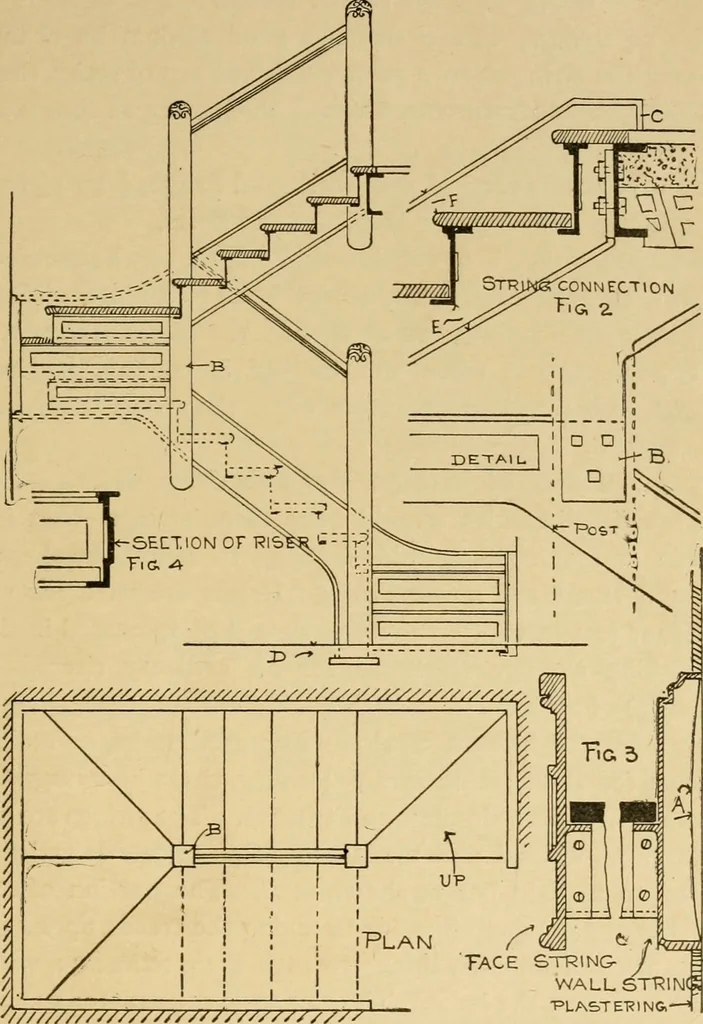

128. To Measure Height of Railing.—The railing heightis measured from a point on the tread directly above the faceof riser (not. the moulding under the nosing of tread), andshould be from 2 feet 8 inches to 3 feet. Fig. 2 is the string STAIRWAYS. 73 connection at the top of stairs. The wall string… … ft: * Pace string- J § WALLSTR!N(5 ^7777777777777777777 PLASTERINa- flange to receive any furring placed on wall. The section ofwall string at Fig. 3 shows clearly the manner of receiving theplastering. 74 ARCHITECTURAL IRON AND STEEL. To arrange the treads and risers upon the strings, the…
