Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, Comstock · leaf 793

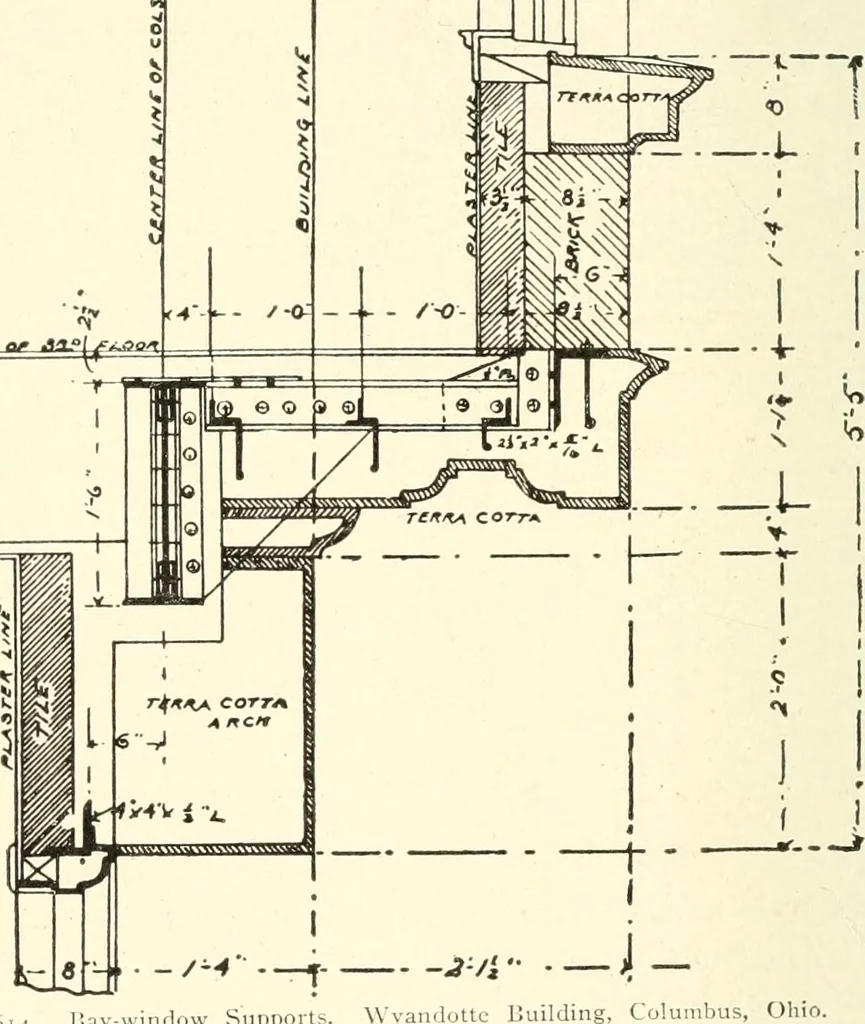

aretherefore divided into three pieces for greater convenience in hand- 766 BUILDIXG CONSTRUCTION. (Ch. XI) lino- and setting, as well as in making. This allows the two sidepieces to be fitted into the flanges and bedded down to each sideof the cantilever. The middle piece, to which the coffer… … Fig. 614. l!ay-window Supports. from these diagonal braces arc run at intervals and rivetted to the6-inch I-beams, as indicated in the section. The top surface ofthis cornice is covered with copper. 643. BAY-WINDOWS IN SKELETON CONSTRUCTION. (See also Article 638.) These have become very prominent…
Building · Carpentry · Masonry
