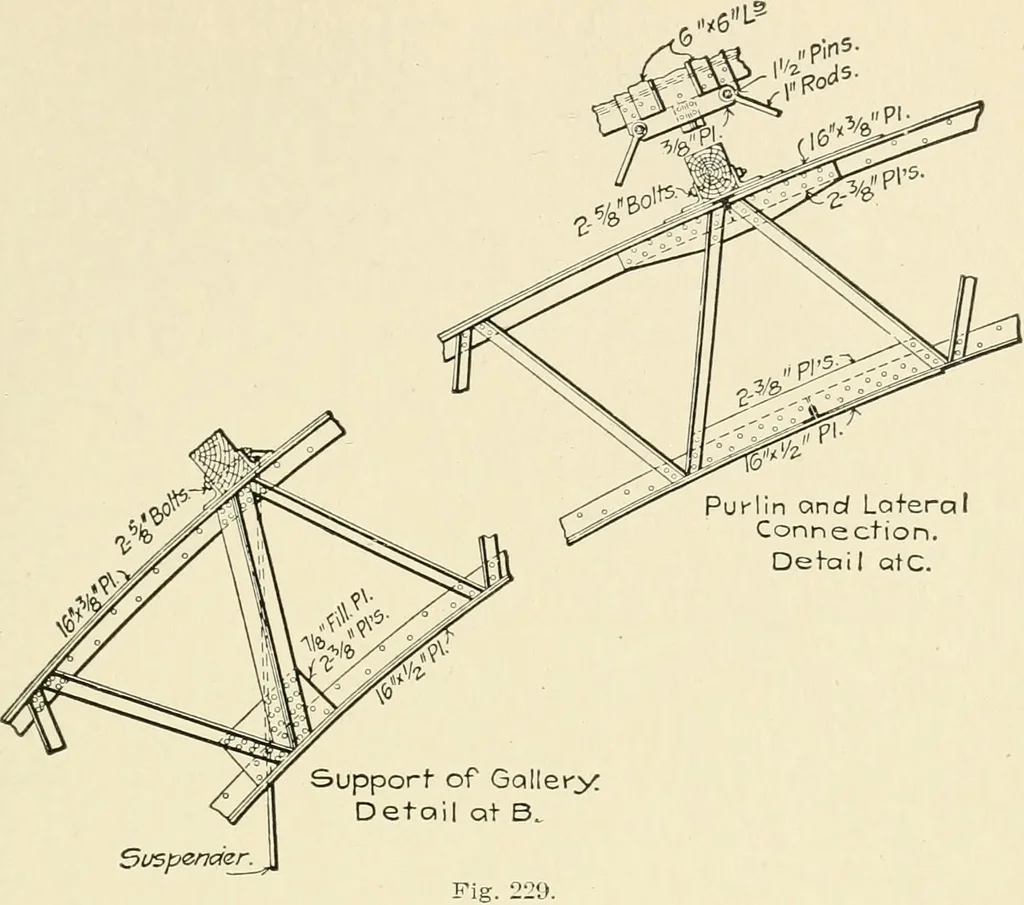

sleeve-nut adjustments. Both chords of the arch trusses are made throughout of pairs of6 x 6 x 7/16-inch angles riveted together back to back and reinforcedwith 16-inch flange cover plates from the haunches to the springingline. The panel lengths are nearly uniform, varying from about 4feet 8… … Pui-lin and LateralConnection.Detail ate. spliced, all web members are riveted directly to the vertical flangesof the chord angles without connection or gusset plates. Each trusswas shipped from the bridge shops in six sections, which were fieldriveted together before erection. The splices were…
