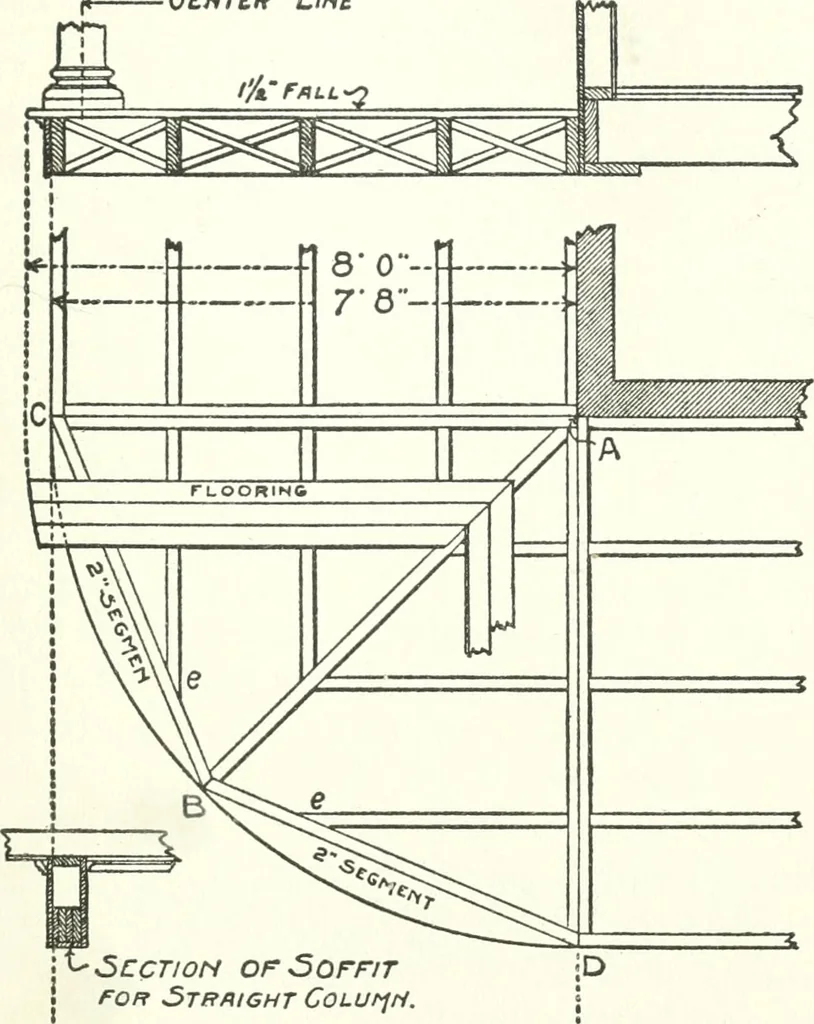

k of the porch; and the lengthof the sides may be found by the method shownin Fig. 42. By placing the square on a boardfrom which the segment is to be cut, with thefigures that give the octagon cuts, and layingoff the radius in line with the blade, as shown,describe the arc, and it is ready to cut.… … FOR 3jRfMGHT COLUr^H. lIlllillilllhiilM C Circular Soffit. D Fig. 41. Framing for Circular Forcb. 77 78 FRAMING Fig. 41, also at the other end of the side piecesat C and D. The tongue will give the cut ate and e. The other cuts are the square or onthe 45-degTee angle. Thus it will be seen thatall…
