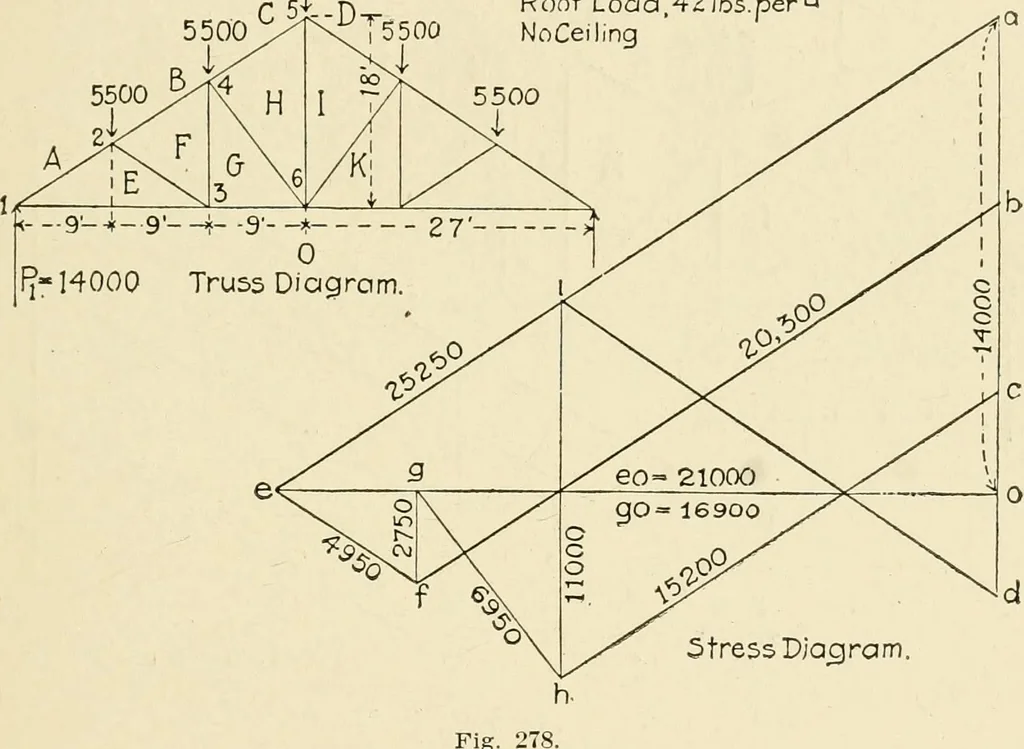

wn from b, the load of 6,250 lbs., which gives the point c.Through c and e draw lines parallel respectively to CF and FEwhich will intersect at f. As we now have the stress in the centerrod and all of the members to the left, it is not necessary to carry thediagram further, but to show that the… … around to the right, is the load of 1,950 lbs., which termintes at v,and as it acts down, s must be above it, a distance of 1,950 lbs. Wethen have sr, rd, de, ef, and draw gs and fg. Now if the diagramhas been accurately drawn a horizontal line drawn halfway betweenthe points s and r will pass…
