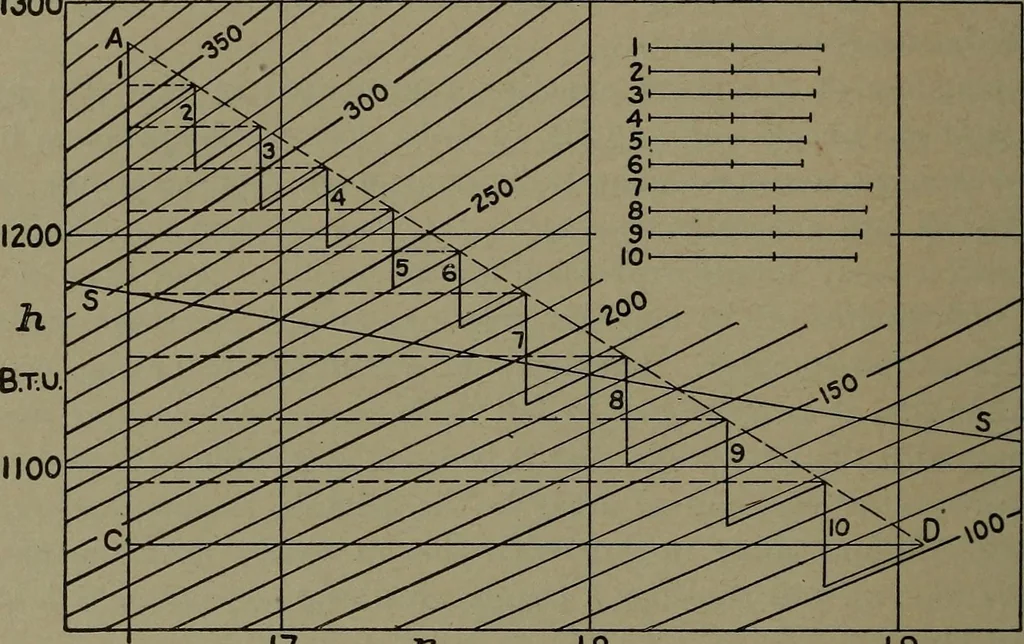

ion among them, is to substitute aslightly curved line for the straight locus AD: this will be concave ipward, or will sag below AD, and will be used with the same skeleton)f horizontals, from the same division points on AC. The shape of 508 DESIGN AND CONSTRUCTION OF THE TURBINE. [Chap. X. curve… … 1.7 Fig. 351. Ji 1.8 — Diagram for Ten Stages. .9 trial is still necessary, but the operation has now as little as possible ofthe random element. (e) Form of the Mollier Diagram. — If the constant-pressurelines were parallel, the scheme of Fig. 350 would make all the stagesalike, establishing a…
