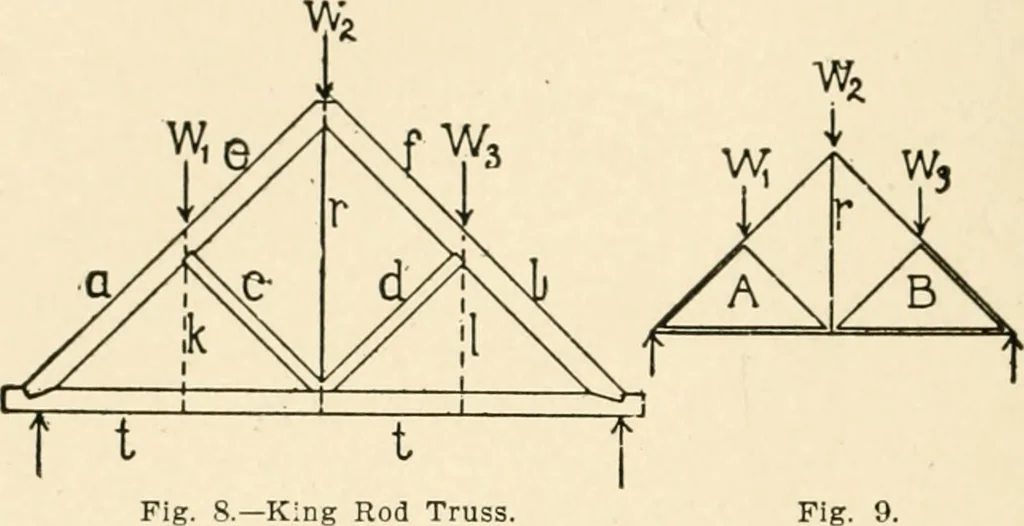

but one. If the load W2 is half way between the supports, and W1 and W3 BLILDIXG COXSTRUCTIOX. are half way between the supports and the centre, then the tensionin r will equal J \Y, + i W8, plus half the weight of the tie-beam. Ifthe tie-beam supports a ceiling over its full length, then one half… … -King Rod Truss Fig. 9. nated as king-rod or king-post trusses, they being the modernform of the old king-post truss, in which a wooden post was usedfor the centre tie. King-rod trusses are sometimes seen with rodsat k and 1. When the tie-beam supports a ceiling they may be usedto advantage, but…
