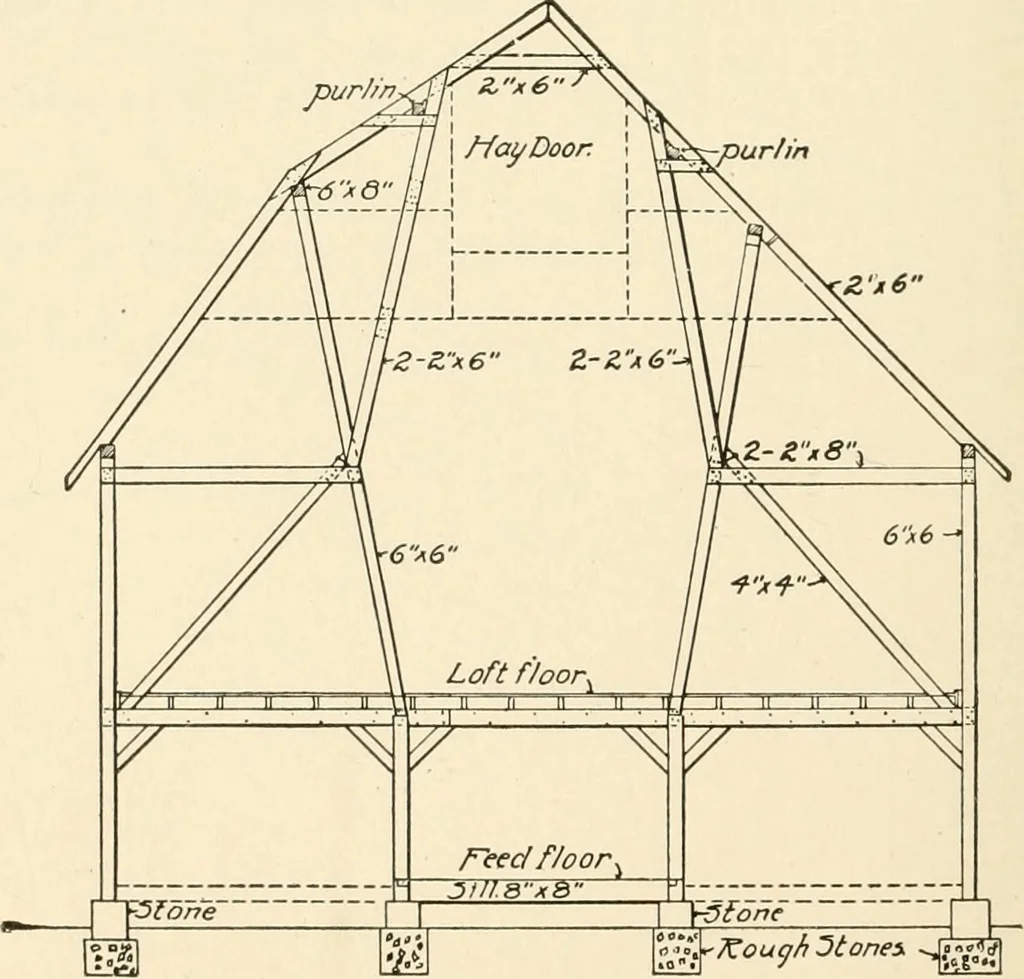

Fig. 62. a cantilever truss will meet the requirements better than any othertype. Fig. 62 shows a simple cantilever trussed roof, suggested by Mr.John Beverly Robinson in an article advocating the use of the can-tilever in building construction, published in the Engineering … Fig. 63. TYPES OF WOODEN TRUSSES. 53 Magazine for November, 1896, which is feasible for wooden con-struction. Fig. 63* shows an open center barn, in which the roof is sup-ported on the cantilever principle, the posts and braces being from8 to 10 feet, on centers. Cantilever trusses when supporting…
