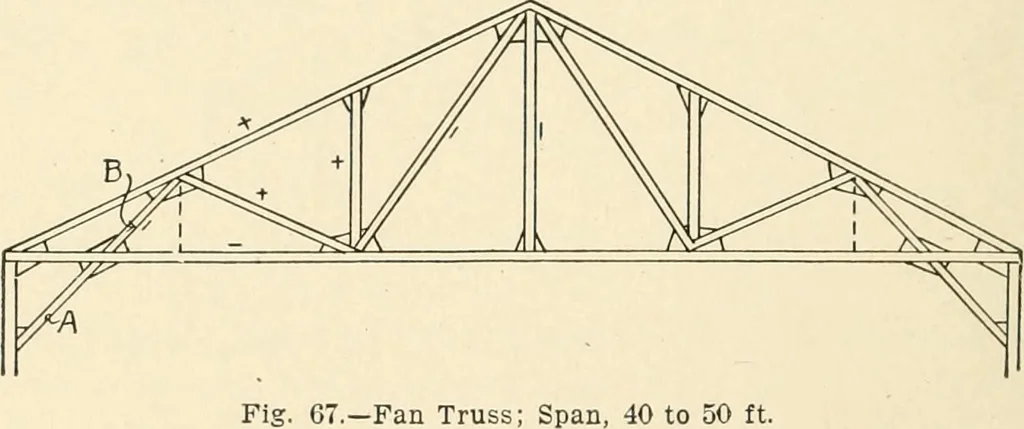

Fig. (36.—Simple Fan Truss. … —Fan Truss; Span, 40 to 50 ft. a simple Fink truss. The truss shown by Fig. 67 differs fromthat in 66, principally in the inclination of the braces. The bracesA, B, in Fig. 67 being inserted to brace the truss from the columnto prevent racking under wind pressure. Fig. 67 should be usedwhen the…
