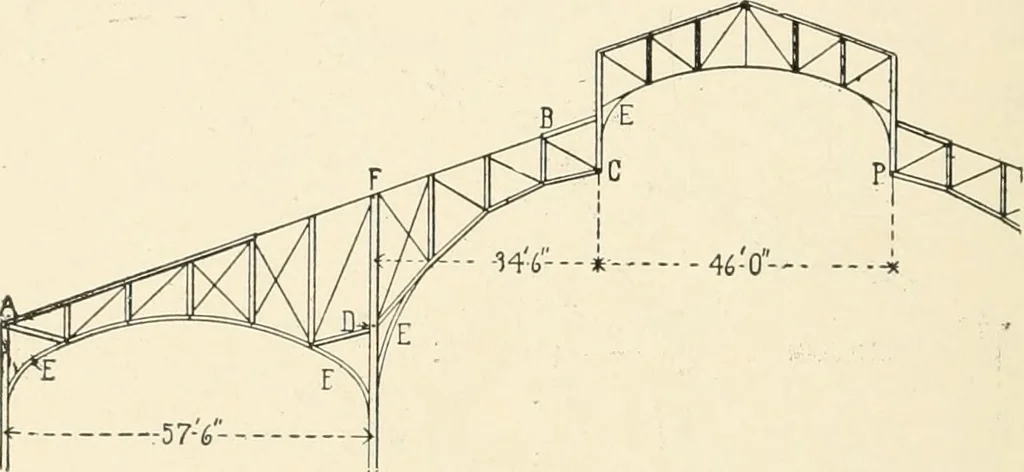

only type of truss available. 45- EXAMPLES OF CANTILEVER ROOF CONSTRUC-TION.—There are few examples of cantilever roof trusses of con-structional importance, although there are many examples of can-tilever bridge trusses. Fig. no shows the proportions and some of the details of theroof trusses of… … Fig. 111.—Cantilever Truss, Mining Building, Chicago, 1893. The portion of the arch between the points A and B was probablyput in to preserve the arch effect, as it could have been dispensedwith. Fig. in shows the proportions of the cantilever trusses used inthe Mining Building at the Columbian…
