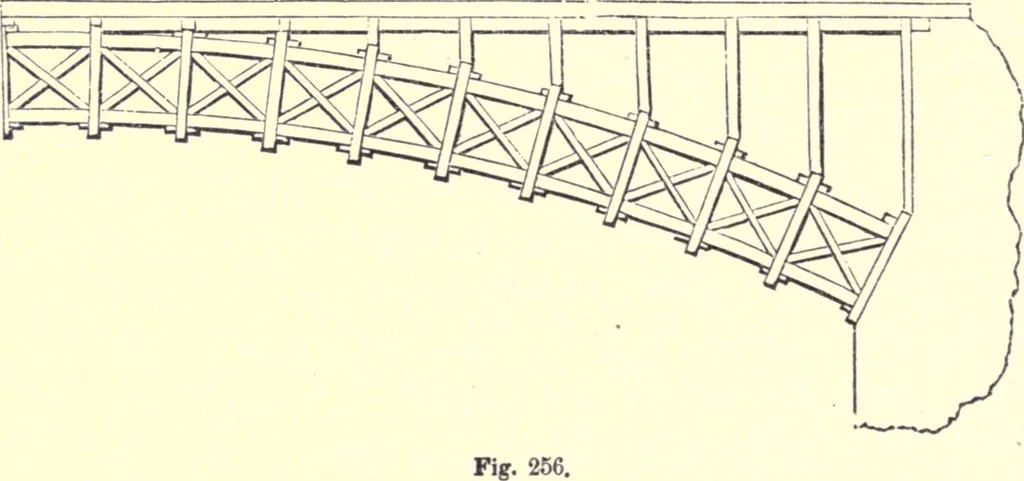

nches. Example.—Suppose the curve of the rib to be describedwith a radius of 100 feet, then what should be the depth ? Theradius in feet, 100, multiplied by 005, gives a product of 5 inches.White pine or oak timber, 5 inches thick, would freely bend tothe above curve ; and, if the required depth of… … 404.—When the span is over 250 feet; a framed rib, formed ac>in Fig. 256, would be preferable to the foregoing. Of this, theupper and the lower edges are formed as just described, by bend-ing the timber to the proper curve. The pieces that tend to thecentre of the curve, called radials, are…
