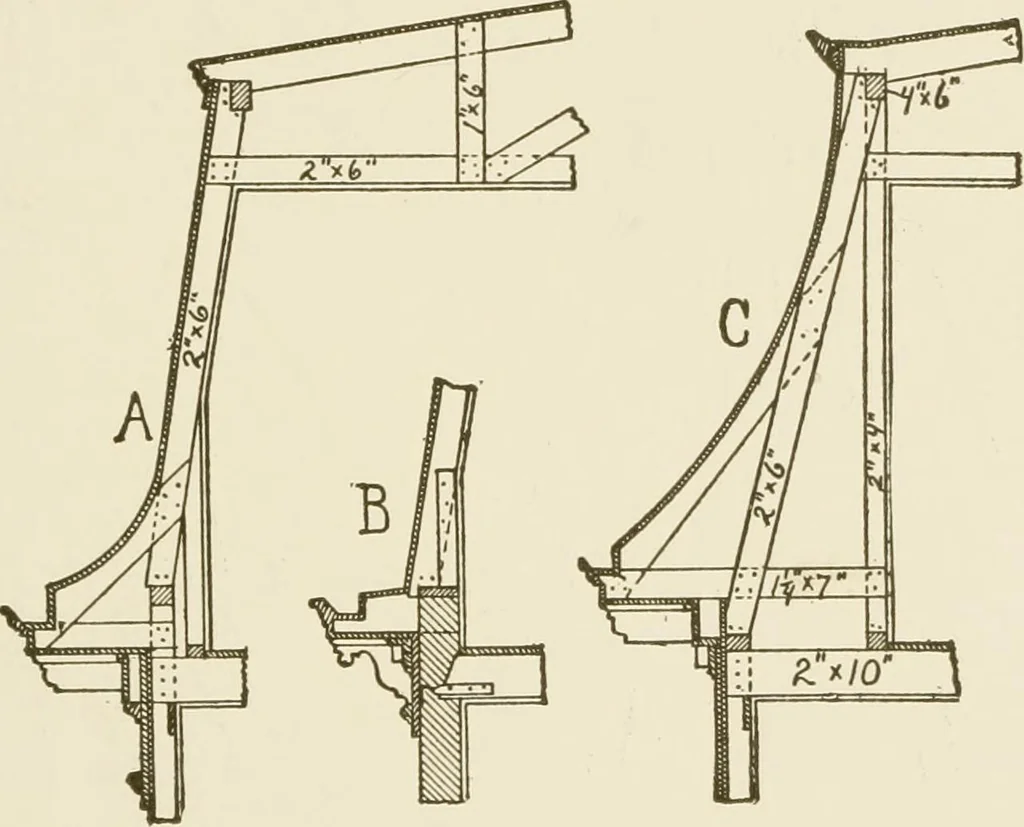

ed. As a general thingsuch roofs are further stiffened by dwarf partitions, as shown by thedotted lines. The construction of mansard roofs will depend, in a great measure,upon the outline. Fig. 84 shows the construction of two of the mostcommon shapes. In both of these drawings the weight of the… … Fig. 84. be formed on 2-inch furring pieces built out from straight rafters,which should take the weight of the roof and always rest on the wallplate. The wall plates should not be more than 2| feet above thefloor joist, and should be so secured that they cannot spread. Mansard roofs are generally…
