Kidder, Frank E. (Frank Eugene), 1859-1905, Nolan, Thomas, 1857-1926 · New York : W.T. Comstock · leaf 161

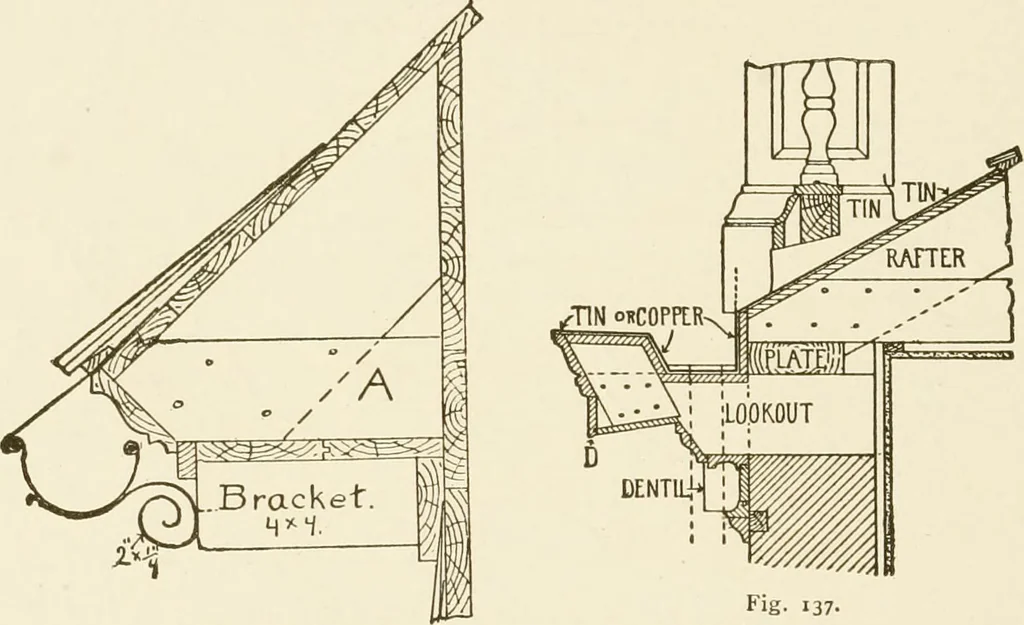

d, but theyare far from durable and cannot be recommended. Where somepretense to ornamentation is made, as in Fig. 136, the gutter may bemade of i6-ounce cold rolled copper, which, while much more ex-pensive, will last almost forever. When eave troughs are used the author recommends that the… … Fig. 137. Fig. 136, Hanger is made in two parts—the shank and the hook—which arebolted together. Several styles of shanks are made so that they maybe screwed to the facia or to the side of the rafter, or nailed to thetop of the roof boarding. The hook is made 4, 5, 6, 7 and 8 incheswide. By means…
Building
Internet Archive · University of Connecticut Library · Public Domain Mark 1.0. Free to use for anything.
