Kidder, Frank E. (Frank Eugene), 1859-1905, Nolan, Thomas, 1857-1926 · New York : W.T. Comstock · leaf 174

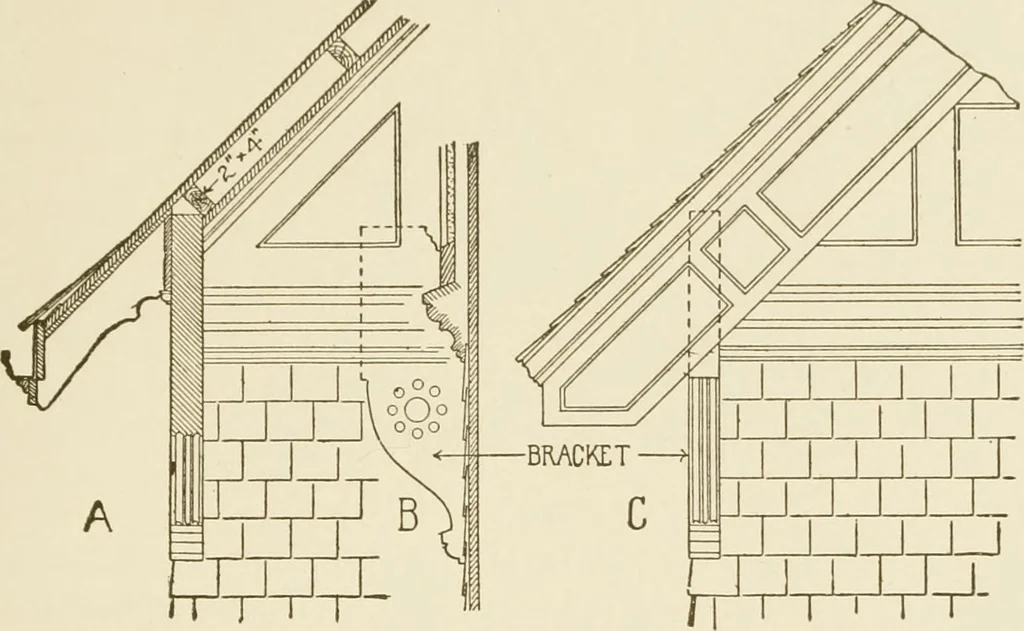

r-tmnilllll^ Fig. iji- GABLE FINISH. 171 Verge boards are applied and supported in many ways, some of themore common being shown in Figs. 151-155. With open eaves the … Fig 152- verge boards are generally, although not always, supported at theirlower end by wooden brackets, which also serve to stop the gable mould-ings, or belt courses, as shown in Figs. 150 and 152, the bracketbeing used more to stop the gable finish than for an actual support.
Building
