Wilson’s Carpentry and joinery / by John Wilson (1891)
Wilson, John · Manchester [England] : Percy Bros. · leaf 42

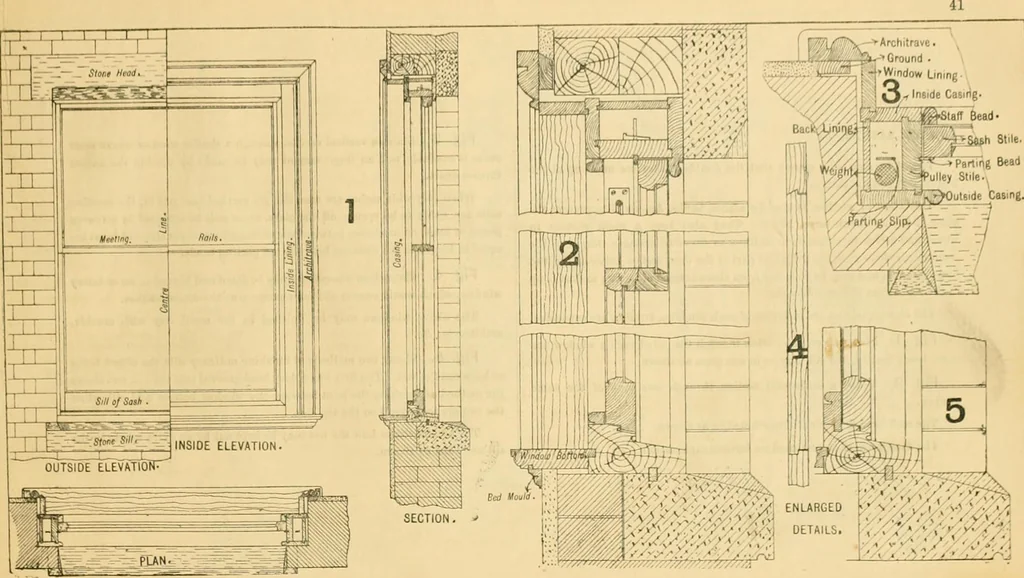

about 2 wide a preparedthe bottom, and rebated and Fig. 5. Shows an enlarged section through the sill of a frame preparedas the last, for window board or bottom ; and metal tongue ; and double sunkfor the sash with an extra groove for a deep bead on the sill as shown.This is to allow the bottom… … DOUBLE SASHES, &c. It will be seen at a glance that the double sashes are made up ol twobottom and two top sashes. This class of window is used for offices, bants, So., as they prevent thenoise from the street being heard. They also keep a room warmer inwinter and cooler in summer, in addition…
Carpentry · Joinery
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
