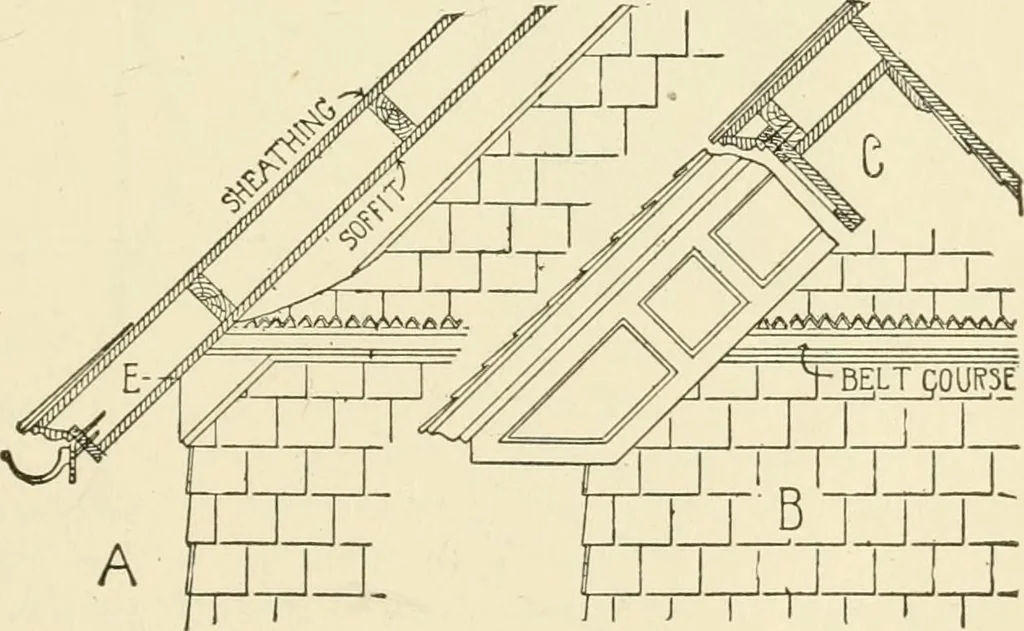

1 rii 11rrriTT LiUZLJII Fig 152. verge boards are generally, although not always, supported at theirlower end by wooden brackets, which also serve to stop the gable mould-ings, or belt courses, as shown in Figs. 150 and 152, the bracketbeing used more to stop the gable finish than for an actual… … - BELT Q0UR5E JJJJI Fig- «53- With an eaves finish like that shown at A, Fig. 153, with the soffitGc the eaves and raking cornice in the same plane, the verge board 172 B UILDING CONS TR UC TJON. may be supported as shown in Section C without brackets, in whichcase the belt courses on the gable, if…
