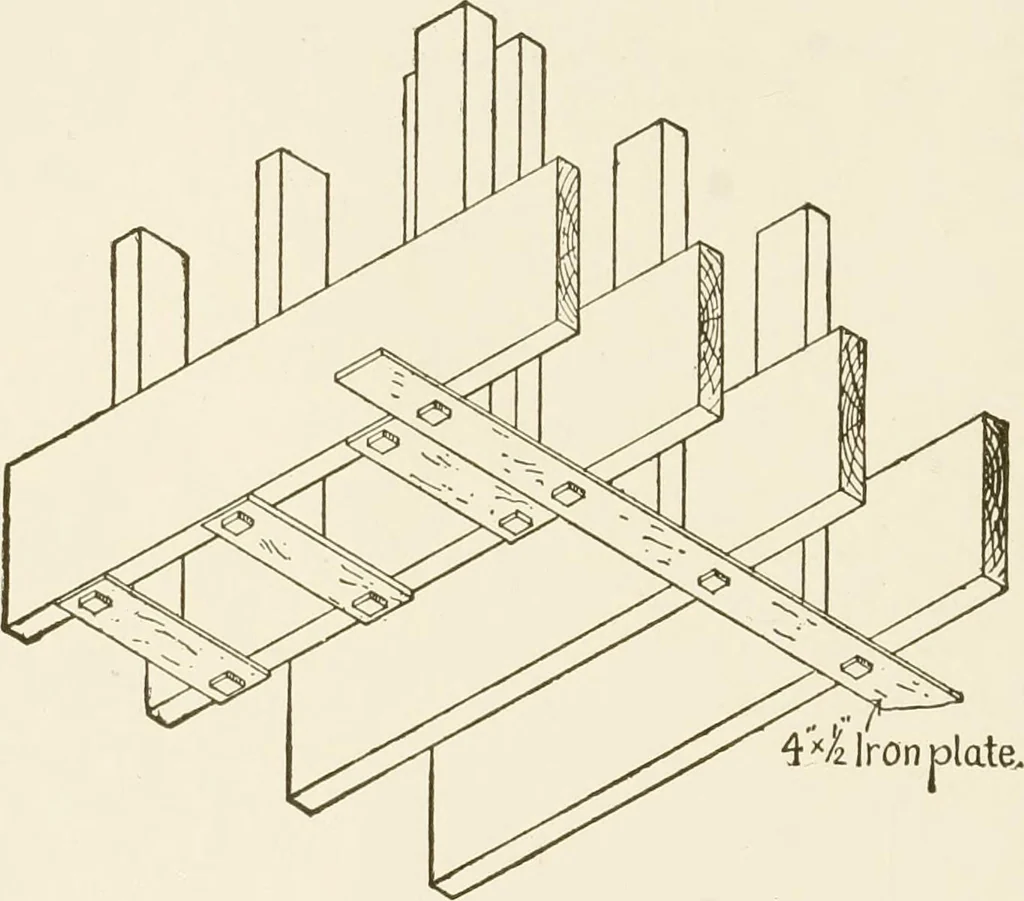

he partitions are supported in this way theceilings should be furred with i-inch strips for lathing. When steel beams are used they should be at least i inch less indepth than the wooden beam to allow for shrinkage in the latter. When the partition runs crossways of the joists it is generally… … Fig. 62. should be remembered that the weight of a partition running cross-ways of the joists and near the middle of the span has twice the de-structive effect that a distributed load would have, and no relief canin this case be gained by bridging. If there should be wide open-ings in such a…
