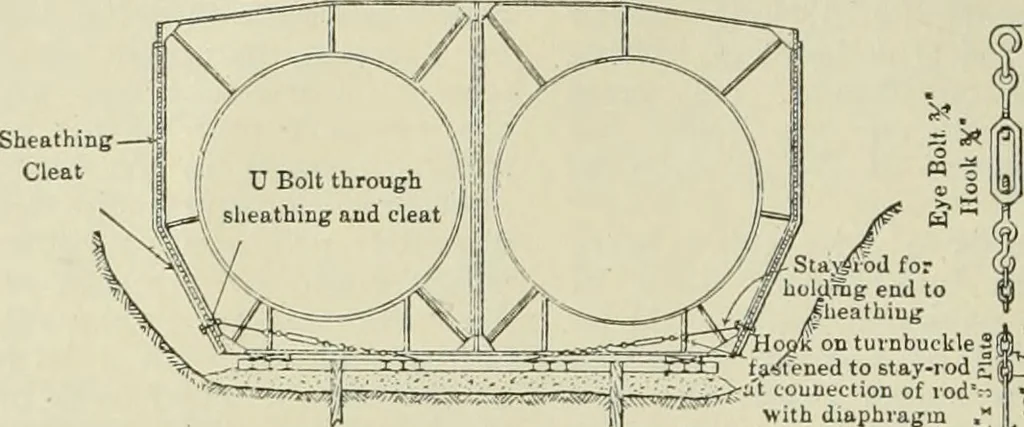

oisting engines, and dynamo for lightingpurposes, all of which were on the lowerdeck or floor of the scow. In addition tothese there were two large derricks on thelower deck, which, when concrete was beingdeposited, were used for transferring gravelfrom the barges to the scows, gravel havingbeen… … ..Wk on turnbuckle |$fa^fc&ed to stay-rod c II M ith diaphragm £ II — Fig. 5—Sketch Showing Method of Anchoring Tubes to Grillage. section of tubes which was being placed. Withthe pilot pins in place in the sockets, a tightjoint was made between the connecting sec-tions with the abutting ends…
