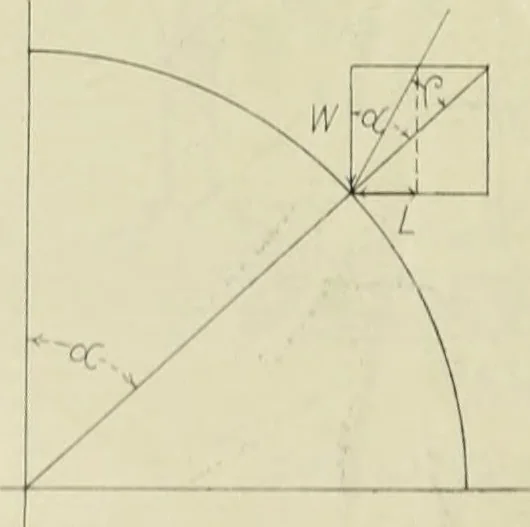

lygon and the linear arch werescaled. The horizontal thrust due to a loadon a given point is a function of the load foreach point, or H = KW. The values of Kwere calculated for each point of division. Now, the bending moment at any point dueto a given load is equal to the horizontalthrust in the… … Fig. 6. Loading Diagram Concrete Arch—Horizontal. for a unit radius Then M (l0OKi,(M1F I M, M, R) I K c ii)Rr. An expression of this type was worked out for the bending rrfbmenl .it each point, due to ;i load at any 10 point The bendingmoment at any point clue to a full symmetrical earth load was…
